BAV99W/ZL115
  • Share:

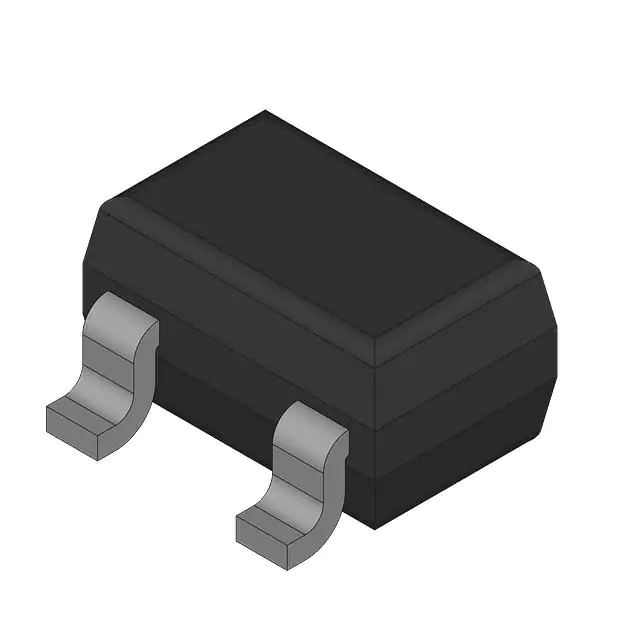

Nexperia USA Inc. BAV99W/ZL115

Manufacturer No:
BAV99W/ZL115
Manufacturer:
Nexperia USA Inc.
Package:
Bulk
Datasheet:
BAV99W/ZL115 Datasheet
ECAD Model:
-
Description:
RECTIFIER DIODE
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Diode Configuration:1 Pair Series Connection
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):100 V
Current - Average Rectified (Io) (per Diode):150mA (DC)
Voltage - Forward (Vf) (Max) @ If:1.25 V @ 150 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):4 ns
Current - Reverse Leakage @ Vr:500 nA @ 80 V
Operating Temperature - Junction:150°C (Max)
Mounting Type:Surface Mount
Package / Case:SC-70, SOT-323
Supplier Device Package:SOT-323
0 Remaining View Similar

In Stock

-
271

Please send RFQ , we will respond immediately.
