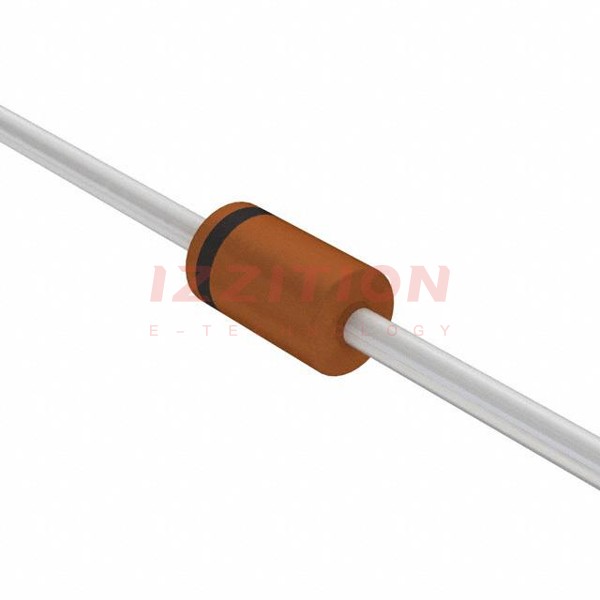

| Part Number | BAT85,133 | BAT86,133 | BAT85,113 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 50 V | 30 V |
| Current - Average Rectified (Io) | 200mA (DC) | 200mA | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA | 900 mV @ 100 mA | 800 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns | 4 ns | 4 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V | 5 µA @ 40 V | 2 µA @ 25 V |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz | 8pF @ 1V, 1MHz | 10pF @ 1V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial |
| Supplier Device Package | DO-34 | DO-34 | DO-34 |
| Operating Temperature - Junction | 125°C (Max) | 125°C (Max) | 125°C (Max) |
