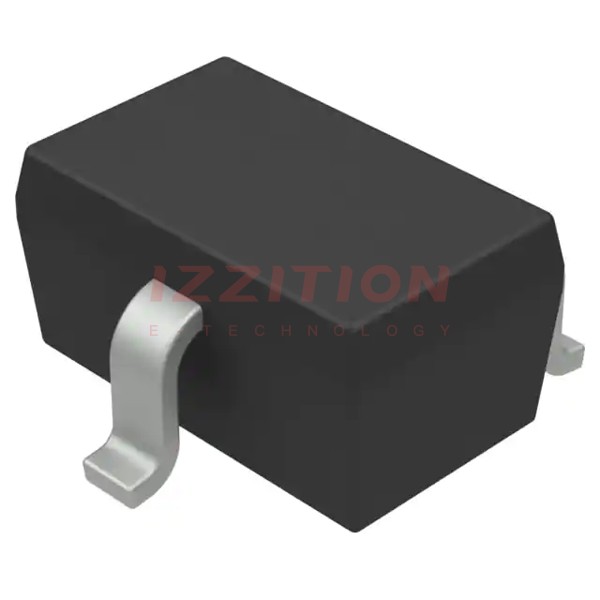

| Part Number | BAT54CWF | BAT54SWF | BAT54AWF | BAT54CW |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | SMC Diode Solutions |
| Product Status | Active | Active | Active | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Series Connection | 1 Pair Common Anode | 1 Pair Common Anode |
| Diode Type | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V | 30 V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) | 200mA (DC) | 200mA (DC) | 100mA |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA | 800 mV @ 100 mA | 800 mV @ 100 mA | 1 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns | 5 ns | 5 ns | 5 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V | 2 µA @ 25 V | 2 µA @ 25 V | 2 µA @ 25 V |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) | 125°C (Max) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 | SOT-323 | SOT-323 | SOT-323 |
