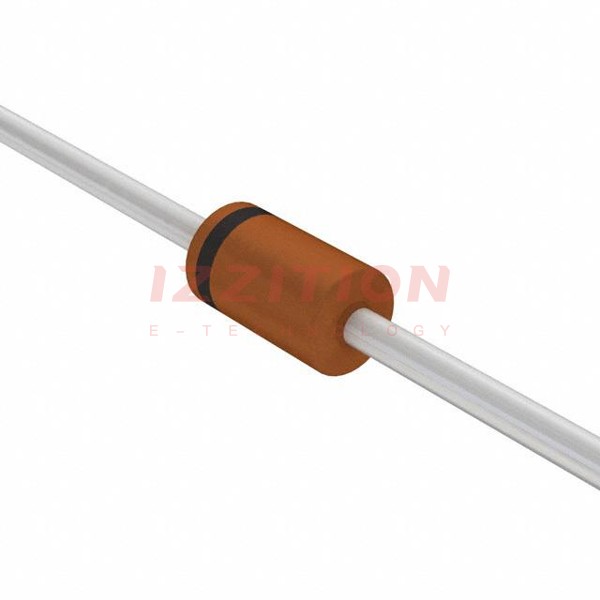

| Part Number | BAS45A,133 | BAS45A,143 | BAS45A,113 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 125 V | 125 V | 125 V |
| Current - Average Rectified (Io) | 250mA (DC) | 250mA (DC) | 250mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA | 1 V @ 100 mA | 1 V @ 100 mA |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 1.5 µs | 1.5 µs | 1.5 µs |
| Current - Reverse Leakage @ Vr | 1 nA @ 125 V | 1 nA @ 125 V | 1 nA @ 125 V |
| Capacitance @ Vr, F | 4pF @ 0V, 1MHz | 4pF @ 0V, 1MHz | 4pF @ 0V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial |
| Supplier Device Package | DO-34 | DO-34 | DO-34 |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 175°C (Max) |
