| Part Number | BAS21QC-QZ | BAS21QB-QZ |
|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V | 200 V |
| Current - Average Rectified (Io) | 250mA (DC) | 250mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 200 mA | 1.25 V @ 200 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns | 50 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 200 V | 100 nA @ 200 V |
| Capacitance @ Vr, F | 5pF @ 0V, 1MHz | 5pF @ 0V, 1MHz |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |

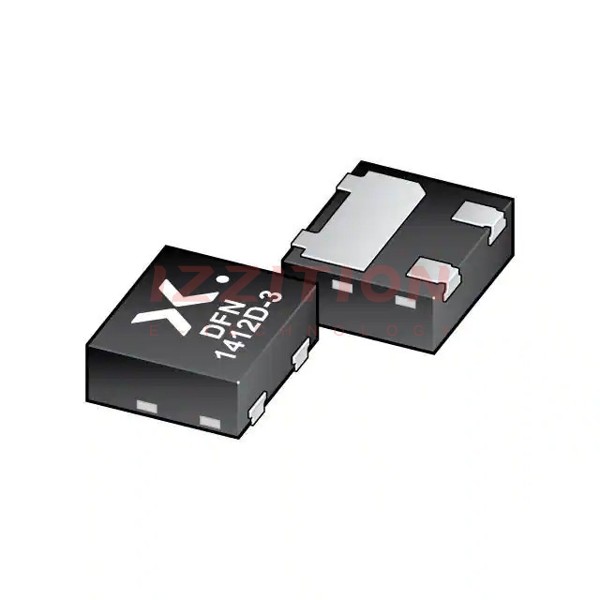

| Package / Case | 3-XDFN Exposed Pad | 3-XDFN Exposed Pad |
| Supplier Device Package | DFN1412D-3 | DFN1110D-3 |
| Operating Temperature - Junction | 150°C | 150°C |
