Please send RFQ , we will respond immediately.

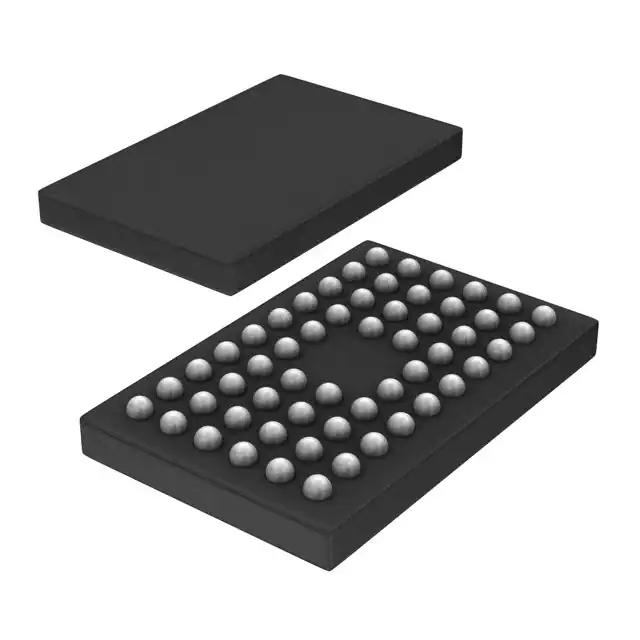

| Part Number | 74LVT16374AEVK | 74LVT16374AEVY | 74LVT16374AEVE |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Function | Standard | Standard | Standard |
| Type | D-Type | D-Type | D-Type |
| Output Type | Tri-State | Tri-State | Tri-State |
| Number of Elements | 2 | 2 | 2 |
| Number of Bits per Element | 8 | 8 | 8 |
| Clock Frequency | 150 MHz | 150 MHz | 150 MHz |
| Max Propagation Delay @ V, Max CL | 5ns @ 3.3V, 50pF | 5ns @ 3.3V, 50pF | 5ns @ 3.3V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 32mA, 64mA | 32mA, 64mA | 32mA, 64mA |
| Voltage - Supply | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Current - Quiescent (Iq) | 4 µA | 4 µA | 4 µA |
| Input Capacitance | 3 pF | 3 pF | 3 pF |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 56-VFBGA (4.5x7) | 56-VFBGA (4.5x7) | 56-VFBGA (4.5x7) |
| Package / Case | 56-VFBGA | 56-VFBGA | 56-VFBGA |
