Please send RFQ , we will respond immediately.

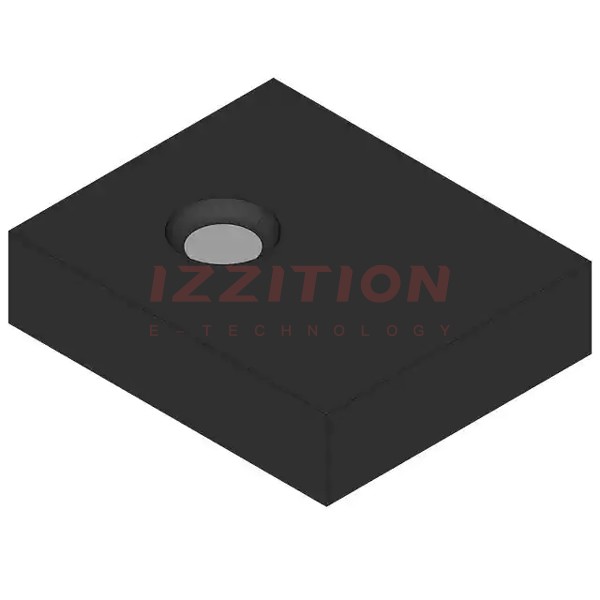

| Part Number | 74LVC3G14GS,115 | 74LVC3G14GT,115 | 74LVC3G04GS,115 | 74LVC3G14GF,115 | 74LVC3G14GN,115 |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Logic Type | - | Inverter | - | Inverter | Inverter |
| Number of Circuits | - | 3 | - | 3 | 3 |
| Number of Inputs | - | 3 | - | 3 | 3 |
| Features | - | Schmitt Trigger | - | Schmitt Trigger | Schmitt Trigger |
| Voltage - Supply | - | 1.65V ~ 5.5V | - | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | - | 4 µA | - | 4 µA | 4 µA |
| Current - Output High, Low | - | 32mA, 32mA | - | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | - | 0.25V ~ 1.2V | - | 0.25V ~ 1.2V | 0.25V ~ 1.2V |
| Logic Level - High | - | 1.5V ~ 3.6V | - | 1.5V ~ 3.6V | 1.5V ~ 3.6V |
| Max Propagation Delay @ V, Max CL | - | 4.3ns @ 5V, 50pF | - | 4.3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF |
| Operating Temperature | - | -40°C ~ 125°C | - | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | - | Surface Mount | - | Surface Mount | Surface Mount |
| Supplier Device Package | - | 8-XSON, SOT833-1 (1.95x1) | - | 8-XSON (1.35x1) | 8-XSON (1.2x1) |
| Package / Case | - | 8-XFDFN | - | 8-XFDFN | 8-XFDFN |
