Please send RFQ , we will respond immediately.

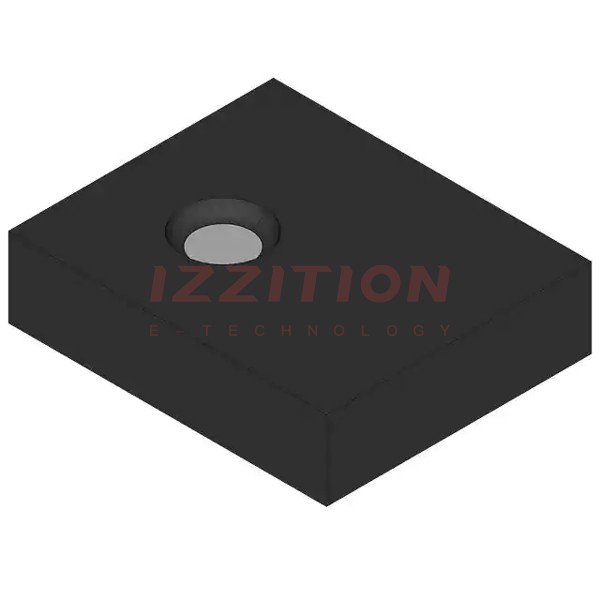

| Part Number | 74LVC3G04GN,115 | 74LVC3G04GT,115 | 74LVC3G04GS,115 | 74LVC3G06GN,115 | 74LVC3GU04GN,115 | 74LVC3G14GN,115 | 74LVC3G04GF,115 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP Semiconductors | Nexperia USA Inc. | NXP USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete |
| Logic Type | - | - | - | Inverter | Inverter | Inverter | Inverter |
| Number of Circuits | - | - | - | 3 | 3 | 3 | 3 |
| Number of Inputs | - | - | - | 3 | 3 | 3 | 3 |
| Features | - | - | - | Open Drain | - | Schmitt Trigger | - |
| Voltage - Supply | - | - | - | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | - | - | - | 4 µA | 4 µA | 4 µA | 4 µA |
| Current - Output High, Low | - | - | - | -, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | - | - | - | 0.7V ~ 0.8V | - | 0.25V ~ 1.2V | 0.7V ~ 0.8V |
| Logic Level - High | - | - | - | 1.7V ~ 2V | - | 1.5V ~ 3.6V | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | - | - | - | 2.9ns @ 5V, 50pF | 3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | 3.2ns @ 5V, 50pF |
| Operating Temperature | - | - | - | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | - | - | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | - | - | 8-XSON (1.2x1) | 8-XSON (1.2x1) | 8-XSON (1.2x1) | 8-XSON (1.35x1) |
| Package / Case | - | - | - | 8-XFDFN | 8-XFDFN | 8-XFDFN | 8-XFDFN |
