Please send RFQ , we will respond immediately.
| Part Number | 74LVC2G66GM,125 | 74LVCV2G66GM,125 | 74LVC2G66GD,125 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | NXP Semiconductors |
| Product Status | Obsolete | Obsolete | Active |
| Switch Circuit | SPST - NO | SPST - NO | - |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | - |
| Number of Circuits | 2 | 2 | - |
| On-State Resistance (Max) | 10Ohm | 10Ohm | - |
| Channel-to-Channel Matching (ΔRon) | - | - | - |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V | 2.3V ~ 5.5V | - |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | 3.9ns, 5ns | 5ns, 9ns | - |
| -3db Bandwidth | 500MHz | 210MHz | - |
| Charge Injection | 7.5pC | 0.0035pC | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF | 8pF | - |
| Current - Leakage (IS(off)) (Max) | 5µA | 10µA | - |
| Crosstalk | -56dB @ 1MHz | -55dB @ 1MHz | - |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | - |
| Mounting Type | Surface Mount | Surface Mount | - |

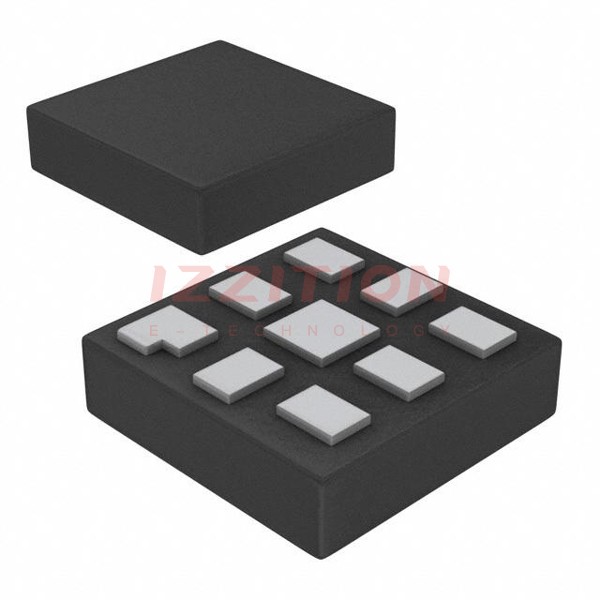

| Package / Case | 8-XFQFN Exposed Pad | 8-XFQFN Exposed Pad | - |
| Supplier Device Package | 8-XQFN (1.6x1.6) | 8-XQFN (1.6x1.6) | - |
