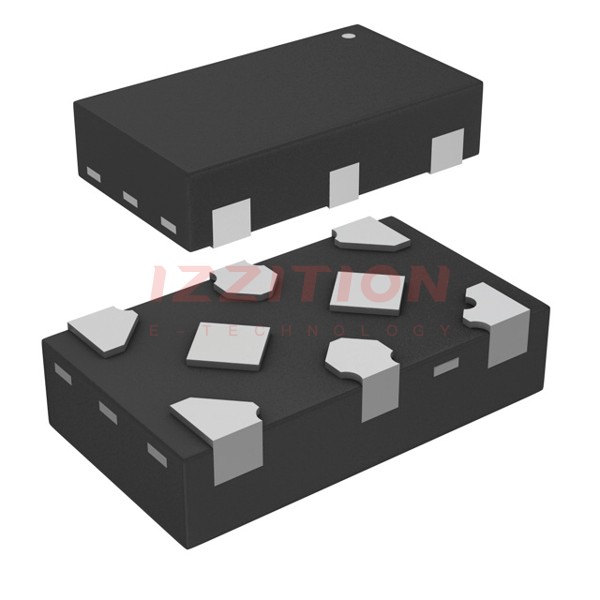

| Part Number | 74LVC2G38GXX | 74LVC2G08GXX | 74LVC2G32GXX |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| Logic Type | NAND Gate | AND Gate | OR Gate |
| Number of Circuits | 2 | 2 | 2 |
| Number of Inputs | 2 | 2 | 2 |
| Features | - | - | - |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 4 µA | 4 µA | 4 µA |
| Current - Output High, Low | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | 0.1V ~ 0.8V | 0.7V ~ 0.8V | 0.1V ~ 0.8V |
| Logic Level - High | - | 0.95V ~ 3.4V | 0.95V ~ 3.4V |
| Max Propagation Delay @ V, Max CL | 4.2ns @ 5V, 50pF | 4.8ns @ 5V, 50pF | 4ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C (TA) | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-X2SON (1.35x0.8) | 8-X2SON (1.35x0.8) | 8-X2SON (1.35x0.8) |
| Package / Case | 8-XFDFN Exposed Pad | 8-XFDFN Exposed Pad | 8-XFDFN Exposed Pad |
