Please send RFQ , we will respond immediately.

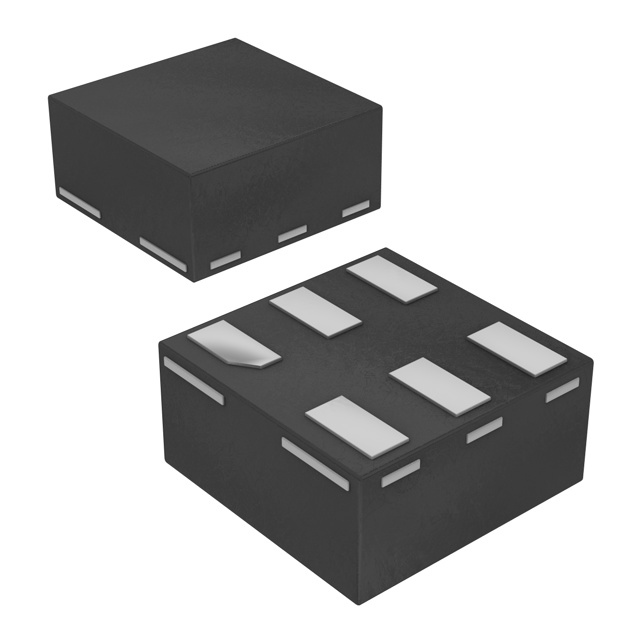

| Part Number | 74LVC2G04GS,132 | 74LVC2G14GS,132 | 74LVC2G06GS,132 | 74LVC2G04GF,132 | 74LVC2G04GM,132 | 74LVC2G04GN,132 |
|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP Semiconductors |
| Product Status | Active | Active | Active | Obsolete | Active | Active |
| Logic Type | Inverter | - | Inverter | Inverter | Inverter | - |
| Number of Circuits | 2 | - | 2 | 2 | 2 | - |
| Number of Inputs | 2 | - | 2 | 2 | 2 | - |
| Features | - | - | Open Drain | - | - | - |
| Voltage - Supply | 1.65V ~ 5.5V | - | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | - |
| Current - Quiescent (Max) | 4 µA | - | 4 µA | 4 µA | 4 µA | - |
| Current - Output High, Low | 32mA, 32mA | - | -, 32mA | 32mA, 32mA | 32mA, 32mA | - |
| Logic Level - Low | 0.7V ~ 0.8V | - | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V | - |
| Logic Level - High | 1.7V ~ 2V | - | 1.7V ~ 2V | 1.7V ~ 2V | 1.7V ~ 2V | - |
| Max Propagation Delay @ V, Max CL | 3.2ns @ 5V, 50pF | - | 2.9ns @ 5V, 50pF | 3.2ns @ 5V, 50pF | 3.2ns @ 5V, 50pF | - |
| Operating Temperature | -40°C ~ 125°C | - | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | - |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | - |
| Supplier Device Package | 6-XSON, SOT1202 (1x1) | - | 6-XSON, SOT1202 (1x1) | 6-XSON, SOT891 (1x1) | 6-XSON, SOT886 (1.45x1) | - |
| Package / Case | 6-XFDFN | - | 6-XFDFN | 6-XFDFN | 6-XFDFN | - |
