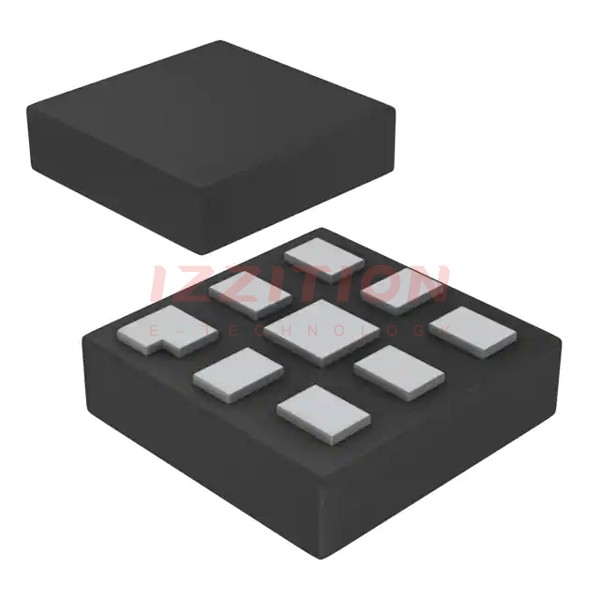

| Part Number | 74LVC2G00GM,125 | 74LVC2G02GM,125 | 74LVC2G08GM,125 | 74LVC2G00GD,125 |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | NXP Semiconductors | Nexperia USA Inc. |
| Product Status | Obsolete | Obsolete | Active | Obsolete |
| Logic Type | NAND Gate | NOR Gate | - | NAND Gate |
| Number of Circuits | 2 | 2 | - | 2 |
| Number of Inputs | 2 | 2 | - | 2 |
| Features | - | - | - | - |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | - | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 4 µA | 4 µA | - | 4 µA |
| Current - Output High, Low | 32mA, 32mA | 32mA, 32mA | - | 32mA, 32mA |
| Logic Level - Low | 0.7V ~ 0.8V | 0.7V ~ 0.8V | - | 0.7V ~ 0.8V |
| Logic Level - High | 1.7V ~ 2V | 1.7V ~ 2V | - | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 3.3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | - | 3.3ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | - | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | - | Surface Mount |
| Supplier Device Package | 8-XQFN (1.6x1.6) | 8-XQFN (1.6x1.6) | - | 8-XSON (2x3) |
| Package / Case | 8-XFQFN Exposed Pad | 8-XFQFN Exposed Pad | - | 8-XFDFN |
