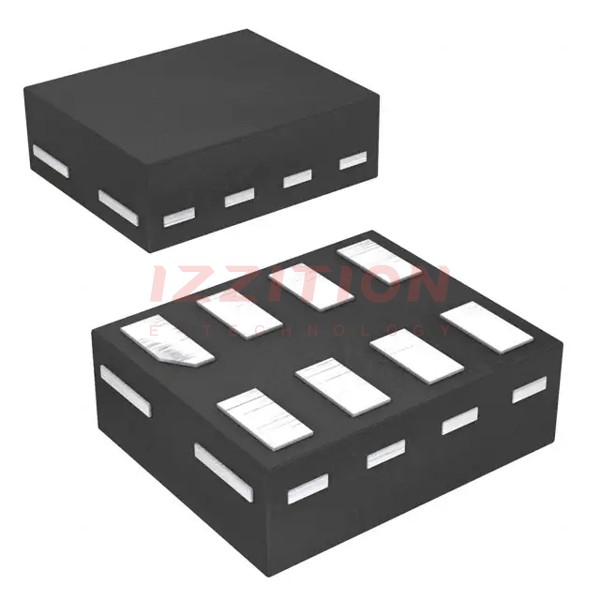

74LVC1G74GN,115
  • Share:

Nexperia USA Inc. 74LVC1G74GN,115

Manufacturer No:
74LVC1G74GN,115
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Datasheet:
74LVC1G74GN,115 Datasheet
ECAD Model:
-
Description:
IC FF D-TYPE SNGL 1BIT 8XSON
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Function:Set(Preset) and Reset
Type:D-Type
Output Type:Complementary
Number of Elements:1
Number of Bits per Element:1
Clock Frequency:200 MHz
Max Propagation Delay @ V, Max CL:4.1ns @ 5V, 50pF
Trigger Type:Positive Edge
Current - Output High, Low:32mA, 32mA
Voltage - Supply:1.65V ~ 5.5V
Current - Quiescent (Iq):40 µA
Input Capacitance:4 pF
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:8-XSON (1.2x1)
Package / Case:8-XFDFN
0 Remaining View Similar

In Stock

$0.64
403

Please send RFQ , we will respond immediately.

Similar Products

Part Number 74LVC1G74GN,115 74LVC1G74GS,115   74LVC1G74GT,115   74LVC2G74GN,115   74LVC1G74GF,115   74LVC1G74GM,115
Manufacturer Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active Active Active Active Active
Function Set(Preset) and Reset Set(Preset) and Reset Set(Preset) and Reset - Set(Preset) and Reset Set(Preset) and Reset
Type D-Type D-Type D-Type - D-Type D-Type
Output Type Complementary Complementary Complementary - Complementary Complementary
Number of Elements 1 1 1 - 1 1
Number of Bits per Element 1 1 1 - 1 1
Clock Frequency 200 MHz 200 MHz 200 MHz - 200 MHz 200 MHz
Max Propagation Delay @ V, Max CL 4.1ns @ 5V, 50pF 4.1ns @ 5V, 50pF 4.1ns @ 5V, 50pF - 4.1ns @ 5V, 50pF 4.1ns @ 5V, 50pF
Trigger Type Positive Edge Positive Edge Positive Edge - Positive Edge Positive Edge
Current - Output High, Low 32mA, 32mA 32mA, 32mA 32mA, 32mA - 32mA, 32mA 32mA, 32mA
Voltage - Supply 1.65V ~ 5.5V 1.65V ~ 5.5V 1.65V ~ 5.5V - 1.65V ~ 5.5V 1.65V ~ 5.5V
Current - Quiescent (Iq) 40 µA 40 µA 40 µA - 40 µA 40 µA
Input Capacitance 4 pF 4 pF 4 pF - 4 pF 4 pF
Operating Temperature -40°C ~ 125°C (TA) -40°C ~ 125°C (TA) -40°C ~ 125°C (TA) - -40°C ~ 125°C (TA) -40°C ~ 125°C (TA)
Mounting Type Surface Mount Surface Mount Surface Mount - Surface Mount Surface Mount
Supplier Device Package 8-XSON (1.2x1) 8-XSON (1.35x1) 8-XSON, SOT833-1 (1.95x1) - 8-XSON (1.35x1) 8-XQFN (1.6x1.6)
Package / Case 8-XFDFN 8-XFDFN 8-XFDFN - 8-XFDFN 8-XFQFN Exposed Pad
