Please send RFQ , we will respond immediately.

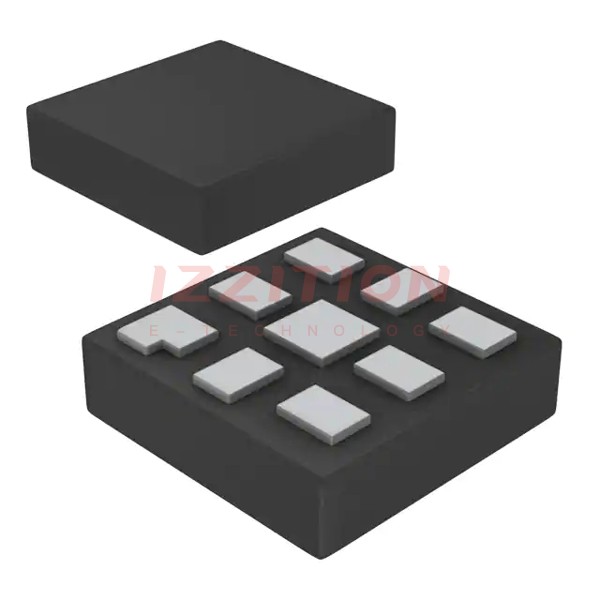

| Part Number | 74LVC1G74GM,115 | 74LVC1G74GS,115 | 74LVC1G74GT,115 | 74LVC1G79GM,115 | 74LVC1G74GN,115 | 74LVC1G74GM,125 | 74LVC1G74GF,115 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP Semiconductors | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Function | Set(Preset) and Reset | Set(Preset) and Reset | Set(Preset) and Reset | Standard | Set(Preset) and Reset | - | Set(Preset) and Reset |
| Type | D-Type | D-Type | D-Type | D-Type | D-Type | - | D-Type |
| Output Type | Complementary | Complementary | Complementary | Non-Inverted | Complementary | - | Complementary |
| Number of Elements | 1 | 1 | 1 | 1 | 1 | - | 1 |
| Number of Bits per Element | 1 | 1 | 1 | 1 | 1 | - | 1 |
| Clock Frequency | 200 MHz | 200 MHz | 200 MHz | 500 MHz | 200 MHz | - | 200 MHz |
| Max Propagation Delay @ V, Max CL | 4.1ns @ 5V, 50pF | 4.1ns @ 5V, 50pF | 4.1ns @ 5V, 50pF | 3.8ns @ 5V, 50pF | 4.1ns @ 5V, 50pF | - | 4.1ns @ 5V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge | - | Positive Edge |
| Current - Output High, Low | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | - | 32mA, 32mA |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | - | 1.65V ~ 5.5V |
| Current - Quiescent (Iq) | 40 µA | 40 µA | 40 µA | 500 µA | 40 µA | - | 40 µA |
| Input Capacitance | 4 pF | 4 pF | 4 pF | 5 pF | 4 pF | - | 4 pF |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | - | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - | Surface Mount |
| Supplier Device Package | 8-XQFN (1.6x1.6) | 8-XSON (1.35x1) | 8-XSON, SOT833-1 (1.95x1) | 6-XSON, SOT886 (1.45x1) | 8-XSON (1.2x1) | - | 8-XSON (1.35x1) |
| Package / Case | 8-XFQFN Exposed Pad | 8-XFDFN | 8-XFDFN | 6-XFDFN | 8-XFDFN | - | 8-XFDFN |
