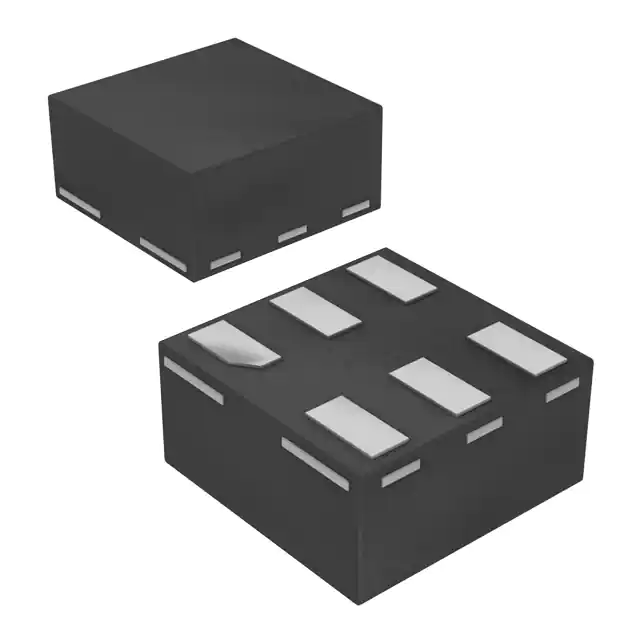

| Part Number | 74LVC1G66GF,132 | 74LVC1G66GS,132 | 74LVC1G66GM,132 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Active | Active |
| Switch Circuit | SPST - NO | SPST - NO | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 1 | 1 | 1 |
| On-State Resistance (Max) | 10Ohm | 10Ohm | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | - | - | - |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | 4.2ns, 5ns | 4.2ns, 5ns | 4.2ns, 5ns |
| -3db Bandwidth | 500MHz | 500MHz | 500MHz |
| Charge Injection | 7.5pC | 7.5pC | 7.5pC |
| Channel Capacitance (CS(off), CD(off)) | 6.5pF | 6.5pF | 6.5pF |
| Current - Leakage (IS(off)) (Max) | 5µA | 5µA | 5µA |
| Crosstalk | - | - | - |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-XFDFN | 6-XFDFN | 6-XFDFN |
| Supplier Device Package | 6-XSON, SOT891 (1x1) | 6-XSON, SOT1202 (1x1) | 6-XSON, SOT886 (1.45x1) |
