Please send RFQ , we will respond immediately.

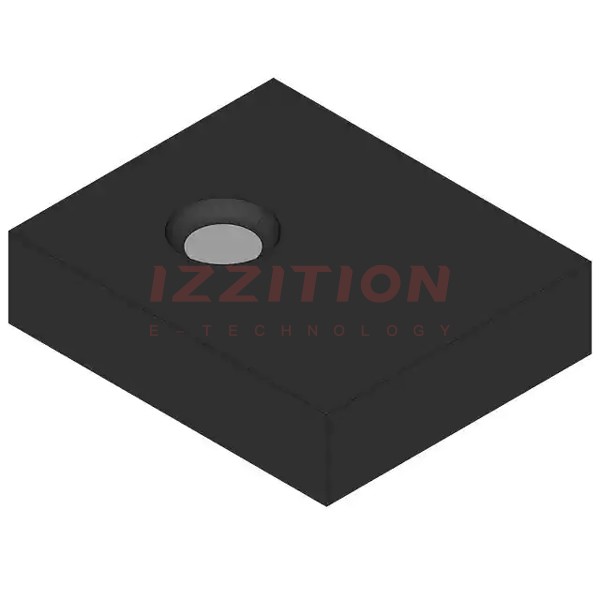

| Part Number | 74LVC1G53GN,115 | 74LVC1G53GS,115 | 74LVC2G53GN,115 | 74LVC1G53GT,115 | 74LVC1G53GF,115 |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Switch Circuit | - | SPDT | - | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | - | 2:1 | - | 2:1 | 2:1 |
| Number of Circuits | - | 1 | - | 1 | 1 |
| On-State Resistance (Max) | - | 10Ohm | - | 10Ohm | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | - | - | - | - | - |
| Voltage - Supply, Single (V+) | - | 1.65V ~ 5.5V | - | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | - | 3.8ns, 3.8ns | - | 3.8ns, 3.8ns | 3.8ns, 3.8ns |
| -3db Bandwidth | - | 300MHz | - | 300MHz | 300MHz |
| Charge Injection | - | 7.5pC | - | 7.5pC | 7.5pC |
| Channel Capacitance (CS(off), CD(off)) | - | 6pF | - | 6pF | 6pF |
| Current - Leakage (IS(off)) (Max) | - | 5µA | - | 5µA | 5µA |
| Crosstalk | - | - | - | - | - |
| Operating Temperature | - | -40°C ~ 125°C (TA) | - | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | - | Surface Mount | - | Surface Mount | Surface Mount |
| Package / Case | - | 8-XFDFN | - | 8-XFDFN | 8-XFDFN |
| Supplier Device Package | - | 8-XSON (1.35x1) | - | 8-XSON, SOT833-1 (1.95x1) | 8-XSON (1.35x1) |
