Please send RFQ , we will respond immediately.

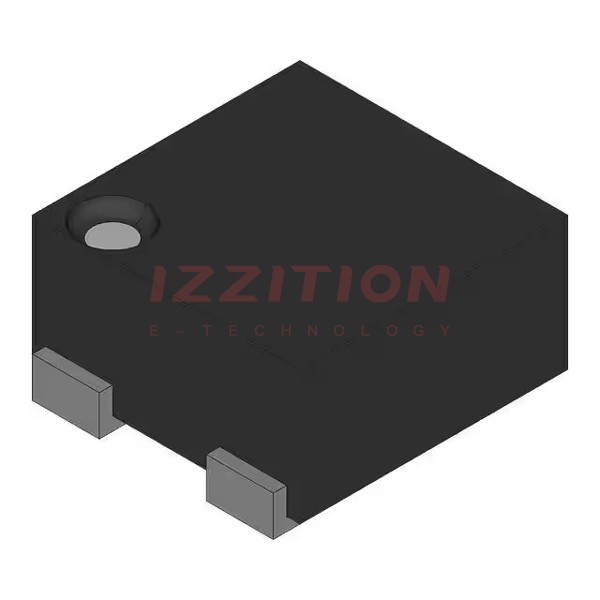

| Part Number | 74LVC1G00GX,125 | 74LVC1G02GX,125 | 74LVC1G04GX,125 | 74LVC1G08GX,125 | 74LVC1G00GV,125 | 74LVC1G00GW,125 |
|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Logic Type | - | NOR Gate | Inverter | AND Gate | NAND Gate | NAND Gate |
| Number of Circuits | - | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | - | 2 | 1 | 2 | 2 | 2 |
| Features | - | - | - | - | - | - |
| Voltage - Supply | - | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | - | 4 µA | 4 µA | 4 µA | 4 µA | 4 µA |
| Current - Output High, Low | - | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | - | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V |
| Logic Level - High | - | 1.7V ~ 2V | 1.7V ~ 2V | 1.7V ~ 2V | 1.7V ~ 2V | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | - | 4ns @ 5V, 50pF | 3.7ns @ 5V, 50pF | 4ns @ 5V, 50pF | 4ns @ 5V, 50pF | 4ns @ 5V, 50pF |
| Operating Temperature | - | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TA) | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | 5-X2SON (0.80x0.80) | 5-X2SON (0.80x0.80) | 5-X2SON (0.80x0.80) | SC-74A | 5-TSSOP |
| Package / Case | - | 4-XFDFN Exposed Pad | 4-XFDFN Exposed Pad | 4-XFDFN Exposed Pad | SC-74A, SOT-753 | 5-TSSOP, SC-70-5, SOT-353 |
