Nexperia USA Inc.-74LVC14ABZZ - Logic - Gates and Inverters Product Specifications and Latest Quotes

Logic Type:	Inverter
Number of Circuits:	6
Number of Inputs:	1
Features:	Schmitt Trigger
Voltage - Supply:	1.65V ~ 3.6V
Current - Quiescent (Max):	40 µA
Current - Output High, Low:	24mA, 24mA
Logic Level - Low:	0.75V ~ 1.5V
Logic Level - High:	1V ~ 2V
Max Propagation Delay @ V, Max CL:	8ns @ 3.3V, 50pF
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Supplier Device Package:	14-DHXQFN (2x2)
Package / Case:	14-XFQFN Exposed Pad

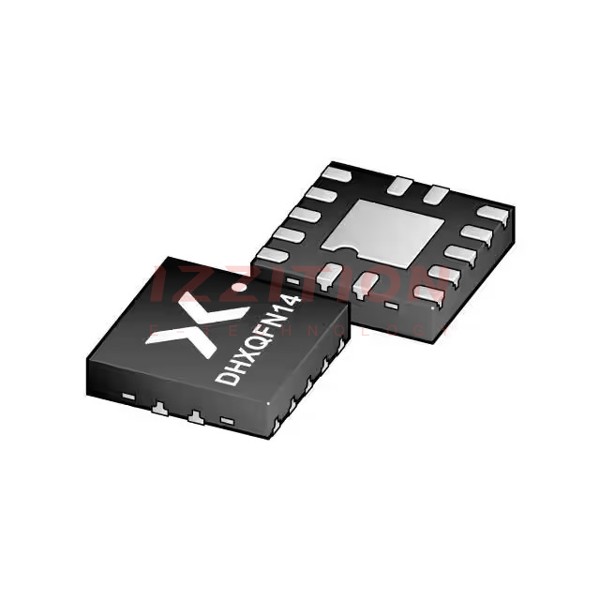

Nexperia USA Inc. 74LVC14ABZZ
