Please send RFQ , we will respond immediately.

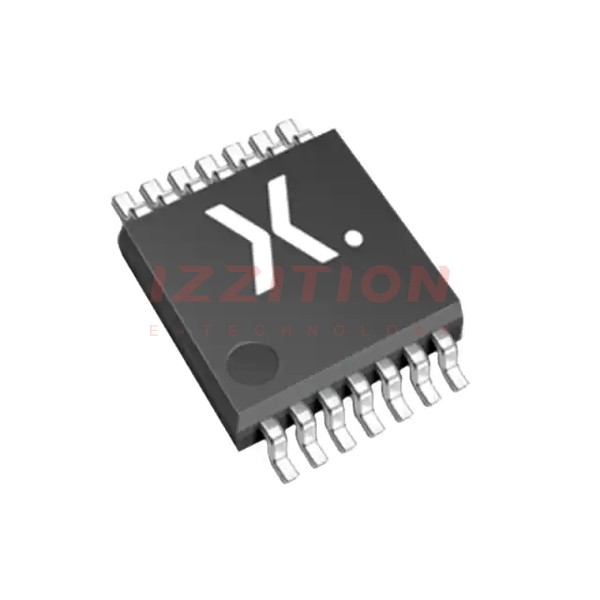

| Part Number | 74LVC04APW-Q100J | 74LVC06APW-Q100J | 74LVC14APW-Q100J | 74LVC00APW-Q100J | 74LVC02APW-Q100J |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Logic Type | Inverter | Inverter | Inverter | NAND Gate | NOR Gate |
| Number of Circuits | 6 | 6 | 6 | 4 | 4 |
| Number of Inputs | 1 | 1 | 1 | 2 | 2 |
| Features | - | Open Drain | Schmitt Trigger | - | - |
| Voltage - Supply | 1.2V ~ 3.6V | 1.2V ~ 5.5V | 1.2V ~ 3.6V | 1.2V ~ 3.6V | 1.2V ~ 3.6V |
| Current - Quiescent (Max) | 40 µA | 10 µA | 40 µA | 40 µA | 10 µA |
| Current - Output High, Low | 24mA, 24mA | -, 32mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA |
| Logic Level - Low | 0.12V ~ 0.8V | 0.12V ~ 0.8V | 0.12V ~ 0.8V | 0.12V ~ 0.8V | 0.12V ~ 0.8V |
| Logic Level - High | 1.08V ~ 2V | 1.08V ~ 2V | 1V ~ 2V | 1.08V ~ 2V | 1.08V ~ 2V |
| Max Propagation Delay @ V, Max CL | 4.5ns @ 3.3V, 50pF | 2.5ns @ 5V, 50pF | 6.4ns @ 3.3V, 50pF | 4.3ns @ 3.3V, 50pF | 4.4ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) |
