| Part Number | 74LVC00ABQ,115 | 74LVC02ABQ,115 | 74LVC04ABQ,115 | 74LVC08ABQ,115 | 74LVC06ABQ,115 | 74LVC10ABQ,115 |
|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Logic Type | NAND Gate | NOR Gate | Inverter | AND Gate | Inverter | NAND Gate |
| Number of Circuits | 4 | 4 | 6 | 4 | 6 | 3 |
| Number of Inputs | 2 | 2 | 1 | 2 | 1 | 3 |
| Features | - | - | - | - | Open Drain | - |
| Voltage - Supply | 1.2V ~ 3.6V | 1.2V ~ 3.6V | 1.2V ~ 3.6V | 1.2V ~ 3.6V | 1.2V ~ 5.5V | 1.2V ~ 3.6V |
| Current - Quiescent (Max) | 40 µA | 40 µA | 40 µA | 40 µA | 40 µA | 40 µA |
| Current - Output High, Low | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | -, 32mA | 24mA, 24mA |
| Logic Level - Low | 0.12V ~ 0.8V | 0.12V ~ 0.8V | 0.12V ~ 0.8V | 0.12V ~ 0.8V | 0.12V ~ 0.8V | 0.12V ~ 0.8V |
| Logic Level - High | 1.08V ~ 2V | 1.08V ~ 2V | 1.08V ~ 2V | 1.08V ~ 2V | 1.08V ~ 2V | 1.08V ~ 2V |
| Max Propagation Delay @ V, Max CL | 4.3ns @ 3.3V, 50pF | 4.4ns @ 3.3V, 50pF | 4.5ns @ 3.3V, 50pF | 4.1ns @ 3.3V, 50pF | 2.5ns @ 5V, 50pF | 5.7ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

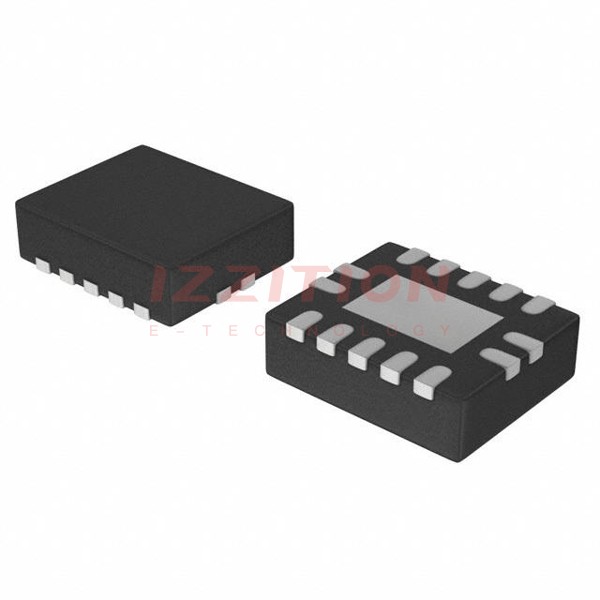

| Supplier Device Package | 14-DHVQFN (2.5x3) | 14-DHVQFN (2.5x3) | 14-DHVQFN (2.5x3) | 14-DHVQFN (2.5x3) | 14-DHVQFN (2.5x3) | 14-DHVQFN (2.5x3) |
| Package / Case | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad |
