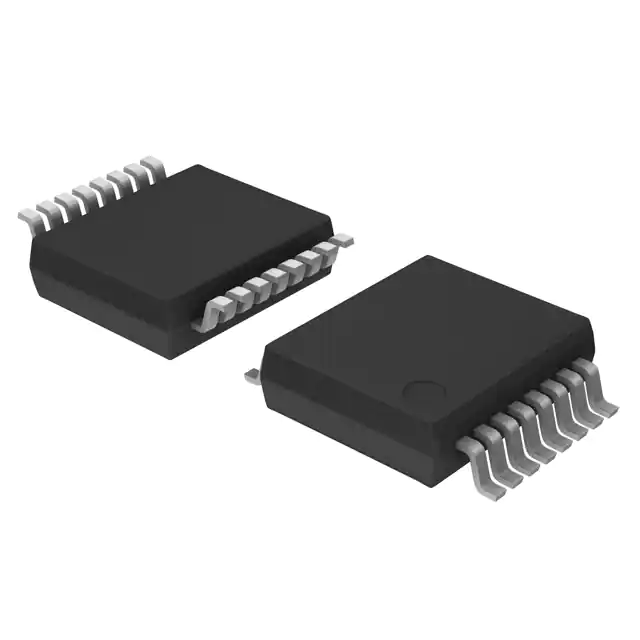

| Part Number | 74LV4052DB,112 | 74LV4052DB,118 | 74LV4053DB,112 | 74LV4051DB,112 | 74LV4052D,112 |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Switch Circuit | SP4T | SP4T | SPDT | - | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 | 4:1 | 2:1 | 8:1 | 4:1 |
| Number of Circuits | 2 | 2 | 3 | 1 | 2 |
| On-State Resistance (Max) | 85Ohm | 85Ohm | 105Ohm | 85Ohm | 85Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm | 2Ohm | 2Ohm | 2Ohm | 2Ohm |
| Voltage - Supply, Single (V+) | 1V ~ 6V | 1V ~ 6V | 1V ~ 6V | 1V ~ 6V | 1V ~ 6V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 46ns, 32ns | 46ns, 32ns | 31ns, 24ns | 34ns, 29ns | 46ns, 32ns |
| -3db Bandwidth | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz |
| Charge Injection | - | - | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF | 3.5pF | 3.5pF | 3.5pF | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 2µA | 2µA | 2µA | 2µA | 2µA |
| Crosstalk | -60dB @ 1MHz | -60dB @ 1MHz | -60dB @ 1MHz | -60dB @ 1MHz | -60dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-SSOP (0.209", 5.30mm Width) | 16-SSOP (0.209", 5.30mm Width) | 16-SSOP (0.209", 5.30mm Width) | 16-SSOP (0.209", 5.30mm Width) | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SSOP | 16-SSOP | 16-SSOP | 16-SSOP | 16-SO |
