Please send RFQ , we will respond immediately.

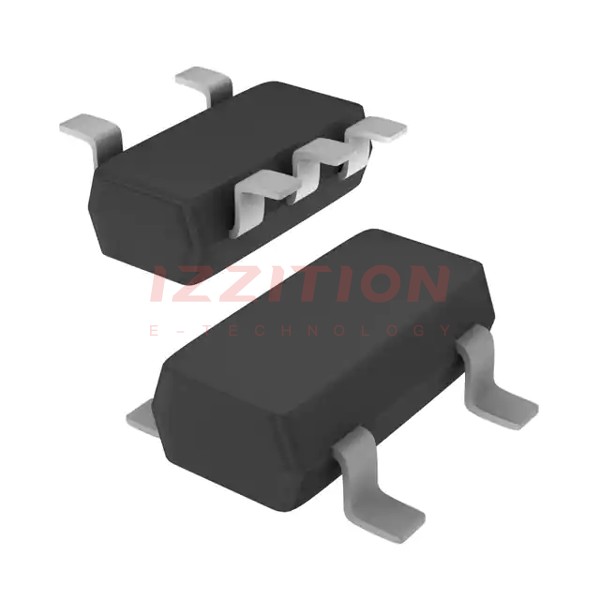

| Part Number | 74LV1T02GVH | 74LV1T02GWH | 74LV1T02GXH | 74LV1T08GVH | 74LV1T04GVH | 74LV1T32GVH | 74LV1T00GVH |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Logic Type | NOR Gate | NOR Gate | NOR Gate | AND Gate | Inverter | OR Gate | NAND Gate |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | 2 | 2 | 2 | 2 | 1 | 2 | 2 |
| Features | - | - | - | - | - | - | - |
| Voltage - Supply | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA |
| Logic Level - Low | 0.58 ~ 0.8V | 0.1V ~ 0.3V | 0.1V ~ 0.3V | 0.58 ~ 0.8V | 0.58 ~ 0.8V | 0.58 ~ 0.8V | 0.58 ~ 0.8V |
| Logic Level - High | 0.94 ~ 2.1V | 1.28V ~ 4.6V | 1.28V ~ 4.6V | 0.94 ~ 2.1V | 0.94 ~ 2.1V | 0.94 ~ 2.1V | 0.94 ~ 2.1V |
| Max Propagation Delay @ V, Max CL | 5.1ns @ 5V, 30pF | 4.7ns @ 5V, 30pF | 4.7ns @ 5V, 30pF | 4.6ns @ 5V, 30pF | 4.6ns @ 5V, 30pF | 4.5ns @ 5V, 30pF | 4.8ns @ 5V, 30pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SC-74A | 5-TSSOP | 5-X2SON (0.80x0.80) | SC-74A | SC-74A | SC-74A | SC-74A |
| Package / Case | SC-74A, SOT-753 | 5-TSSOP, SC-70-5, SOT-353 | 4-XFDFN Exposed Pad | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 |
