| Part Number | 74HCT4067BQ,118 | 74HCT4067BQ,115 |
|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Obsolete |
| Switch Circuit | - | - |
| Multiplexer/Demultiplexer Circuit | 16:1 | 16:1 |
| Number of Circuits | 1 | 1 |
| On-State Resistance (Max) | 120Ohm | 120Ohm |
| Channel-to-Channel Matching (ΔRon) | 6Ohm | 6Ohm |
| Voltage - Supply, Single (V+) | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 65ns, 60ns | 65ns, 60ns |
| -3db Bandwidth | 100MHz | 100MHz |
| Charge Injection | - | - |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 800nA | 800nA |
| Crosstalk | - | - |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

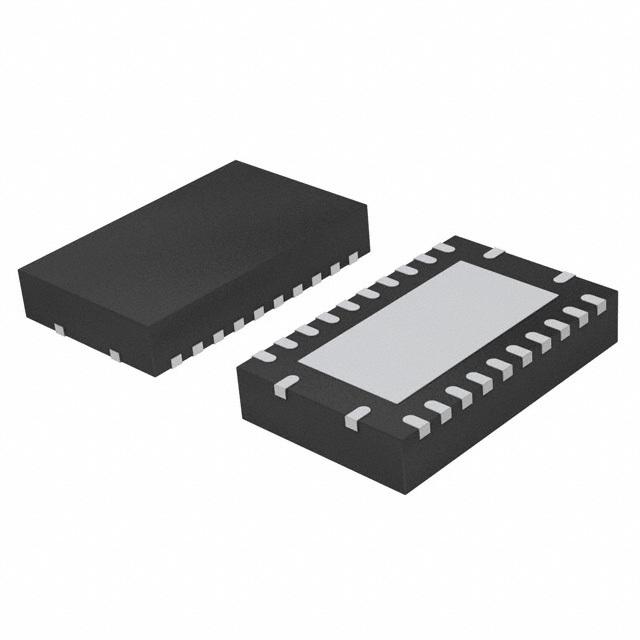

| Package / Case | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-DHVQFN (5.5x3.5) | 24-DHVQFN (5.5x3.5) |
