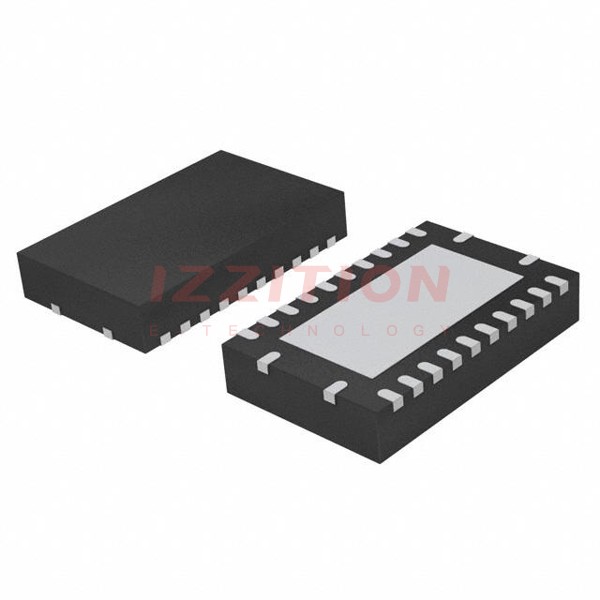

| Part Number | 74HCT4067BQ,115 | 74HCT4067BQ,118 | 74HCT4066BQ,115 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Active | Active |
| Switch Circuit | - | - | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 16:1 | 16:1 | 1:1 |
| Number of Circuits | 1 | 1 | 4 |
| On-State Resistance (Max) | 120Ohm | 120Ohm | 20Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 6Ohm | 6Ohm | 3Ohm |
| Voltage - Supply, Single (V+) | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | 65ns, 60ns | 65ns, 60ns | 44ns, 30ns |
| -3db Bandwidth | 100MHz | 100MHz | 200MHz |
| Charge Injection | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF | 3.5pF | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 800nA | 800nA | 1µA |
| Crosstalk | - | - | -60dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 14-VFQFN Exposed Pad |
| Supplier Device Package | 24-DHVQFN (5.5x3.5) | 24-DHVQFN (5.5x3.5) | 14-DHVQFN (2.5x3) |
