| Part Number | 74HCT4052BQ,115 | 74HCT4852BQ,115 | 74HCT4053BQ,115 | 74HCT4051BQ,115 |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| Switch Circuit | DP4T | SP4T | SPDT | - |
| Multiplexer/Demultiplexer Circuit | 4:1 | 4:1 | 2:1 | 8:1 |
| Number of Circuits | 2 | 2 | 3 | 1 |
| On-State Resistance (Max) | 150Ohm | 210Ohm | 120Ohm | 120Ohm |
| Channel-to-Channel Matching (ΔRon) | 6Ohm | 2Ohm | 6Ohm | 6Ohm |
| Voltage - Supply, Single (V+) | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±1V ~ 5V | - | ±1V ~ 5V | ±1V ~ 5V |
| Switch Time (Ton, Toff) (Max) | 60ns, 48ns | 25ns, 80ns | 34ns, 31ns | 39ns, 32ns |
| -3db Bandwidth | 180MHz | - | 170MHz | 180MHz |
| Charge Injection | - | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF | 10pF | 3.5pF | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 2µA | 100nA | 100nA | 400nA |
| Crosstalk | -60dB @ 1MHz | - | -60dB @ 1MHz | - |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

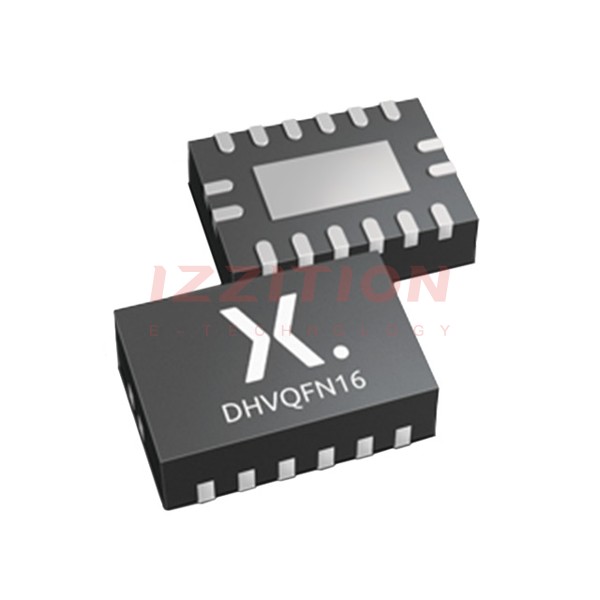

| Package / Case | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-DHVQFN (2.5x3.5) | 16-DHVQFN (2.5x3.5) | 16-DHVQFN (2.5x3.5) | 16-DHVQFN (2.5x3.5) |
