Please send RFQ , we will respond immediately.

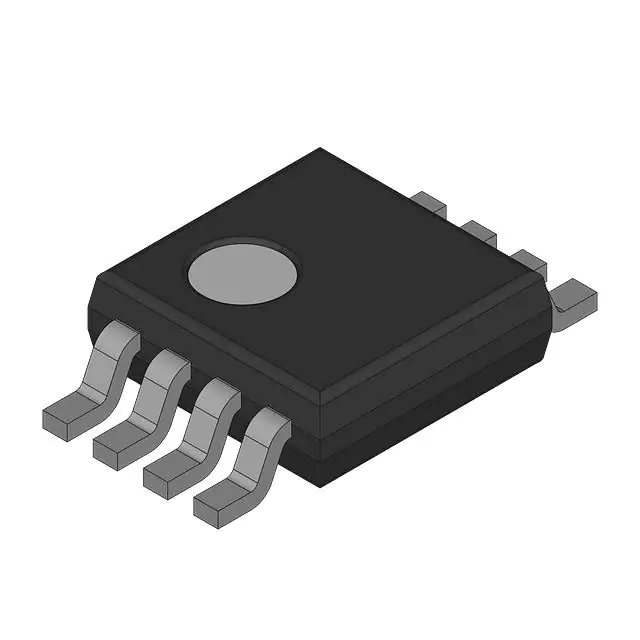

| Part Number | 74HCT2G00DC,125 | 74HCT2G08DC,125 | 74HCT2G00DP,125 | 74HCT2G02DC,125 |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| Logic Type | - | AND Gate | NAND Gate | NOR Gate |
| Number of Circuits | - | 2 | 2 | 2 |
| Number of Inputs | - | 2 | 2 | 2 |
| Features | - | - | - | - |
| Voltage - Supply | - | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | - | 20 µA | 20 µA | 20 µA |
| Current - Output High, Low | - | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA |
| Logic Level - Low | - | 0.8V | 0.8V | 0.8V |
| Logic Level - High | - | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | - | 14ns @ 4.5V, 50pF | 12ns @ 4.5V, 50pF | 12ns @ 4.5V, 50pF |
| Operating Temperature | - | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | 8-VSSOP | 8-TSSOP | 8-VSSOP |
| Package / Case | - | 8-VFSOP (0.091", 2.30mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-VFSOP (0.091", 2.30mm Width) |
