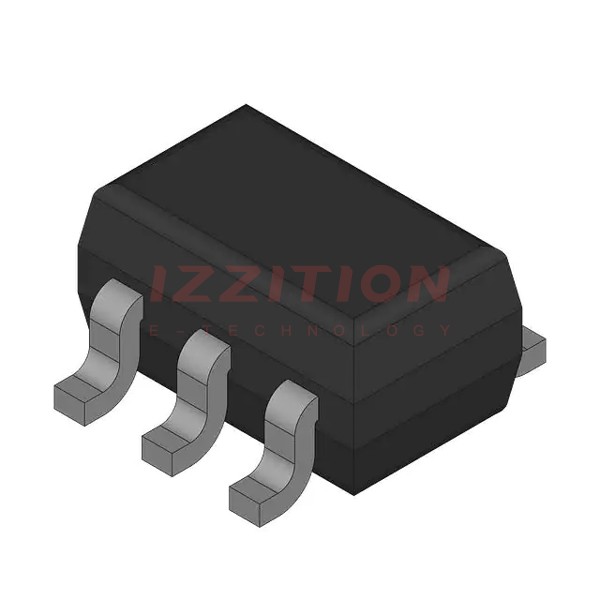

| Part Number | 74HCT1G04GW-Q100125 | 74HCT2G04GW-Q100125 | 74HCT1G08GW-Q100125 | 74HCT1G00GW-Q100125 | 74HCT1G02GW-Q100125 | 74HCT1G04GV-Q100125 |
|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Logic Type | Inverter | Inverter | AND Gate | NAND Gate | NOR Gate | Inverter |
| Number of Circuits | 1 | 2 | 1 | 1 | 1 | 1 |
| Number of Inputs | 1 | 2 | 2 | 2 | 2 | 1 |
| Features | - | Schmitt Trigger | - | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 20 µA | 10 µA | 20 µA | 20 µA | 20 µA | 20 µA |
| Current - Output High, Low | 2mA, 2mA | 4mA, 4mA | 2mA, 2mA | 2mA, 2mA | 2mA, 2mA | 2mA, 2mA |
| Logic Level - Low | 0.8V | 0.8V | 0.8V | 0.8V | 0.8V | 0.8V |
| Logic Level - High | 2V | 2V | 2V | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | 10ns @ 4.5V, 50pF | 18ns @ 4.5V, 50pF | 27ns @ 4.5V, 50pF | 12ns @ 4.5V, 50pF | 11ns @ 4.5V, 50pF | 10ns @ 4.5V, 50pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 5-TSSOP | SOT-363 | 5-TSSOP | 5-TSSOP | 5-TSSOP | 5-TSOP |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 | 6-TSSOP, SC-88, SOT-363 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | SC-74A, SOT-753 |
