Please send RFQ , we will respond immediately.
| Part Number | 74HCT04BQ-Q100,115 | 74HCT14BQ-Q100,115 | 74HCT08BQ-Q100,115 | 74HCT00BQ-Q100,115 | 74HCT02BQ-Q100,115 |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Logic Type | Inverter | Inverter | AND Gate | NAND Gate | NOR Gate |
| Number of Circuits | 6 | 6 | 4 | 4 | 4 |
| Number of Inputs | 1 | 1 | 2 | 2 | 2 |
| Features | - | Schmitt Trigger | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA | 2 µA | 2 µA | 40 µA | 2 µA |
| Current - Output High, Low | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA |
| Logic Level - Low | 0.8V | 0.5V ~ 0.6V | 0.8V | 0.8V | 0.8V |
| Logic Level - High | 2V | 1.9V ~ 2.1V | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | 19ns @ 4.5V, 50pF | 34ns @ 4.5V, 50pF | 24ns @ 4.5V, 50pF | 12ns @ 4.5V, 50pF | 19ns @ 4.5V, 50pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

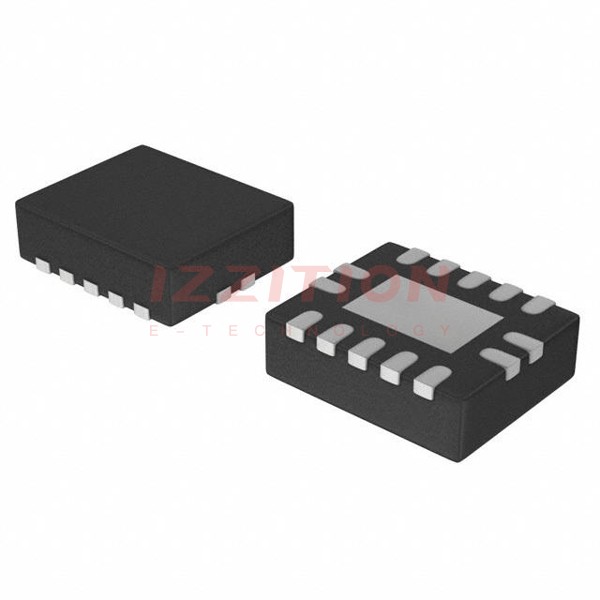

| Supplier Device Package | 14-DHVQFN (2.5x3) | 14-DHVQFN (2.5x3) | 14-DHVQFN (2.5x3) | 14-DHVQFN (2.5x3) | 14-DHVQFN (2.5x3) |
| Package / Case | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad |
