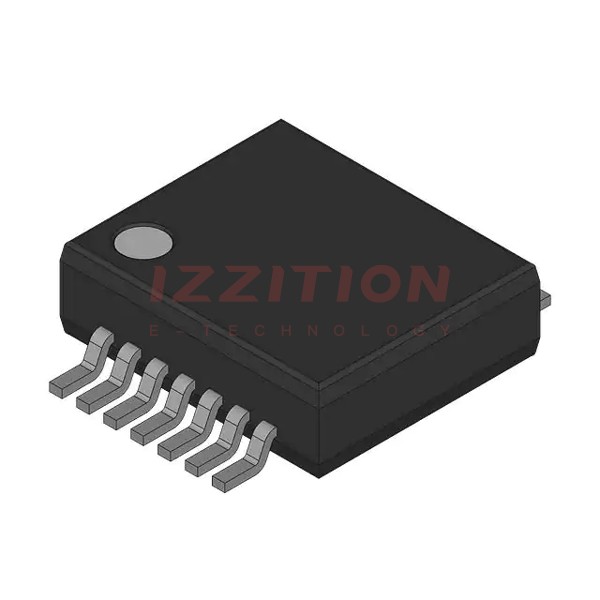

| Part Number | 74HCT00DB118 | 74HCT02DB118 | 74HCT00DB,118 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Obsolete |
| Logic Type | NAND Gate | NOR Gate | NAND Gate |
| Number of Circuits | 4 | 4 | 4 |
| Number of Inputs | 2 | 2 | 2 |
| Features | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 40 µA | 2 µA | 40 µA |
| Current - Output High, Low | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA |
| Logic Level - Low | 0.8V | 0.8V | 0.8V |
| Logic Level - High | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | 12ns @ 4.5V, 50pF | 19ns @ 4.5V, 50pF | 12ns @ 4.5V, 50pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-SSOP | 14-SSOP | 14-SSOP |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) | 14-SSOP (0.209", 5.30mm Width) | 14-SSOP (0.209", 5.30mm Width) |
