Please send RFQ , we will respond immediately.

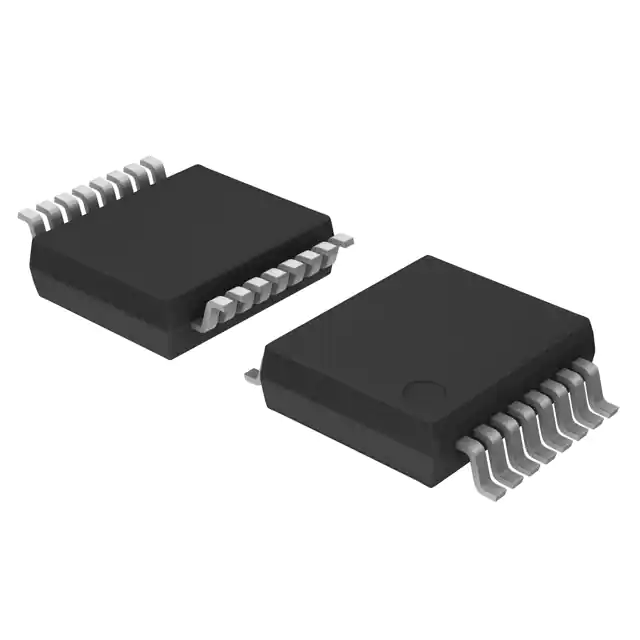

| Part Number | 74HC4053DB,118 | 74HC4053DB118 | 74HC4051DB,118 | 74HC4052DB,118 | 74HC4053DB,112 |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP Semiconductors |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Active |
| Switch Circuit | SPDT | - | - | SP4T | - |
| Multiplexer/Demultiplexer Circuit | 2:1 | - | 8:1 | 4:1 | - |
| Number of Circuits | 3 | - | 1 | 2 | - |
| On-State Resistance (Max) | 120Ohm | - | 120Ohm | 150Ohm | - |
| Channel-to-Channel Matching (ΔRon) | 6Ohm | - | 6Ohm | 6Ohm | - |
| Voltage - Supply, Single (V+) | 2V ~ 10V | - | 2V ~ 10V | 2V ~ 10V | - |
| Voltage - Supply, Dual (V±) | ±1.5V ~ 5V | - | ±1.5V ~ 5V | ±1.5V ~ 5V | - |
| Switch Time (Ton, Toff) (Max) | 31ns, 29ns | - | 51ns, 42ns | 58ns, 48ns | - |
| -3db Bandwidth | 170MHz | - | 180MHz | 180MHz | - |
| Charge Injection | - | - | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF | - | 3.5pF | 3.5pF | - |
| Current - Leakage (IS(off)) (Max) | 100nA | - | 400nA | 2µA | - |
| Crosstalk | -60dB @ 1MHz | - | - | -60dB @ 1MHz | - |
| Operating Temperature | -40°C ~ 125°C (TA) | - | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | - |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | - |
| Package / Case | 16-SSOP (0.209", 5.30mm Width) | - | 16-SSOP (0.209", 5.30mm Width) | 16-SSOP (0.209", 5.30mm Width) | - |
| Supplier Device Package | 16-SSOP | - | 16-SSOP | 16-SSOP | - |
