| Part Number | 74HC4051BQ,115 | 74HC4052BQ,115 | 74HC4053BQ,115 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| Switch Circuit | - | SP4T | SPDT |
| Multiplexer/Demultiplexer Circuit | 8:1 | 4:1 | 2:1 |
| Number of Circuits | 1 | 2 | 3 |
| On-State Resistance (Max) | 120Ohm | 150Ohm | 120Ohm |
| Channel-to-Channel Matching (ΔRon) | 6Ohm | 6Ohm | 6Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 10V | 2V ~ 10V | 2V ~ 10V |
| Voltage - Supply, Dual (V±) | ±1.5V ~ 5V | ±1.5V ~ 5V | ±1.5V ~ 5V |
| Switch Time (Ton, Toff) (Max) | 51ns, 42ns | 58ns, 48ns | 31ns, 29ns |
| -3db Bandwidth | 180MHz | 180MHz | 170MHz |
| Charge Injection | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF | 3.5pF | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 400nA | 2µA | 100nA |
| Crosstalk | - | -60dB @ 1MHz | -60dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

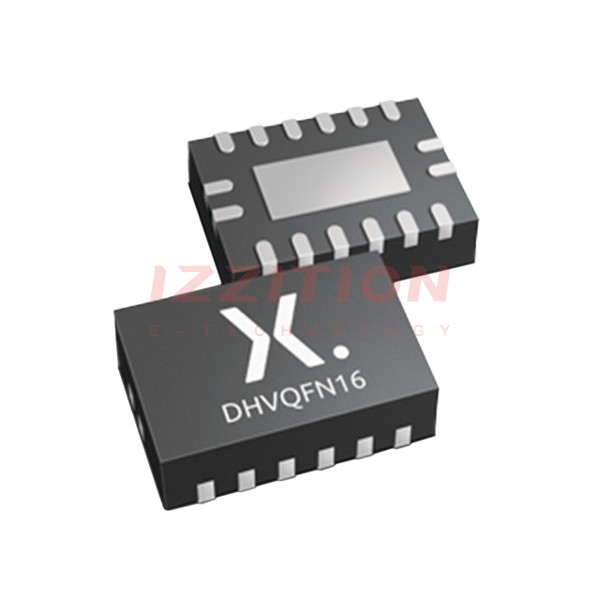

| Package / Case | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-DHVQFN (2.5x3.5) | 16-DHVQFN (2.5x3.5) | 16-DHVQFN (2.5x3.5) |
