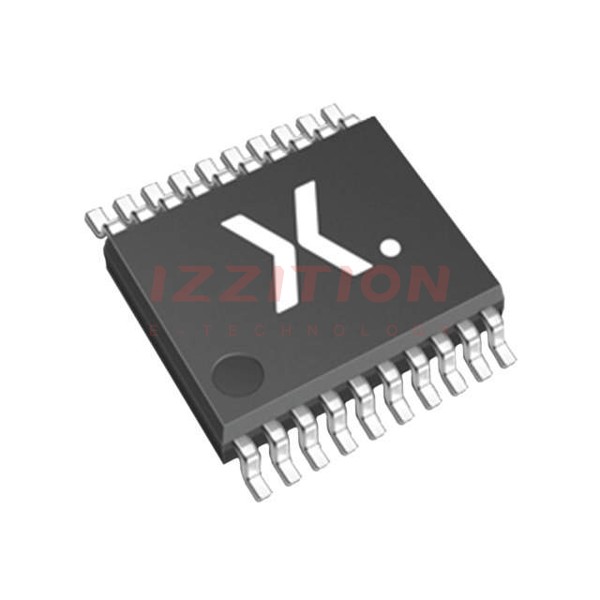

| Part Number | 74HC273PW,112 | 74HC273PW,118 | 74HC73PW,112 | 74HC173PW,112 |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Active | Obsolete | Active |
| Function | Master Reset | Master Reset | Reset | Master Reset |
| Type | D-Type | D-Type | JK Type | D-Type |
| Output Type | Non-Inverted | Non-Inverted | Complementary | Tri-State, Non-Inverted |
| Number of Elements | 1 | 1 | 2 | 1 |
| Number of Bits per Element | 8 | 8 | 1 | 4 |
| Clock Frequency | 122 MHz | 122 MHz | 83 MHz | 95 MHz |
| Max Propagation Delay @ V, Max CL | 26ns @ 6V, 50pF | 26ns @ 6V, 50pF | 27ns @ 6V, 50pF | 30ns @ 6V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Negative Edge | Positive Edge |
| Current - Output High, Low | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 7.8mA, 7.8mA |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V |
| Current - Quiescent (Iq) | 8 µA | 8 µA | 4 µA | 4 µA |
| Input Capacitance | 3.5 pF | 3.5 pF | 3.5 pF | 3.5 pF |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 20-TSSOP | 20-TSSOP | 14-TSSOP | 16-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) |
