Please send RFQ , we will respond immediately.

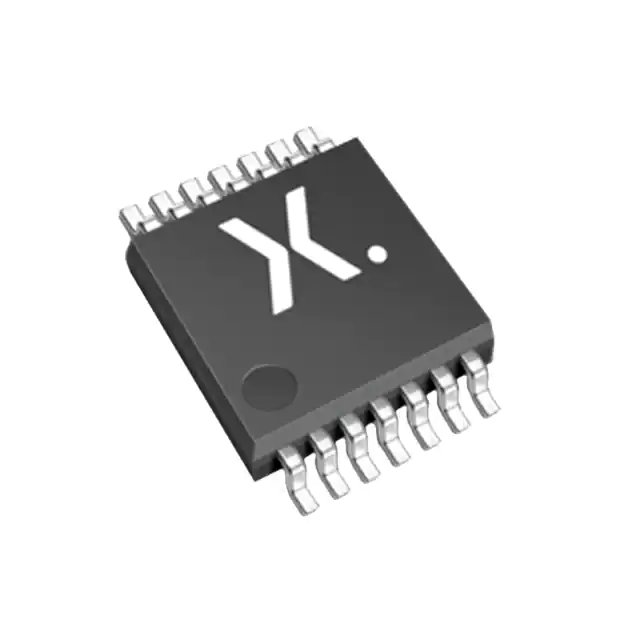

| Part Number | 74HC08PW,118 | 74HC02PW,118 | 74HC03PW,118 | 74HC04PW,118 | 74HC05PW,118 | 74HC08PW,112 |
|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Logic Type | AND Gate | NOR Gate | NAND Gate | Inverter | Inverter | AND Gate |
| Number of Circuits | 4 | 4 | 4 | 6 | 6 | 4 |
| Number of Inputs | 2 | 2 | 2 | 1 | 1 | 2 |
| Features | - | - | Open Drain | - | Open Drain | - |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA | 2 µA | 2 µA | 2 µA | 2 µA | 2 µA |
| Current - Output High, Low | 5.2mA, 5.2mA | 5.2mA, 5.2mA | -, 5.2mA | 5.2mA, 5.2mA | -, 5.2mA | 5.2mA, 5.2mA |
| Logic Level - Low | 0.5V ~ 1.8V | 0.5V ~ 1.8V | 0.5V ~ 1.8V | 0.5V ~ 1.8V | 0.5V ~ 1.8V | 0.5V ~ 1.8V |
| Logic Level - High | 1.5V ~ 4.2V | 1.5V ~ 4.2V | 1.5V ~ 4.2V | 1.5V ~ 4.2V | 1.5V ~ 4.2V | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 15ns @ 6V, 50pF | 15ns @ 6V, 50pF | 16ns @ 6V, 50pF | 14ns @ 6V, 50pF | 15ns @ 6V, 50pF | 15ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) |
