Please send RFQ , we will respond immediately.
| Part Number | 74HC05BQ,115 | 74HC08BQ,115 | 74HC00BQ,115 | 74HC02BQ,115 | 74HC04BQ,115 |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Logic Type | Inverter | AND Gate | NAND Gate | NOR Gate | Inverter |
| Number of Circuits | 6 | 4 | 4 | 4 | 6 |
| Number of Inputs | 1 | 2 | 2 | 2 | 1 |
| Features | Open Drain | - | - | - | - |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA | 2 µA | 40 µA | 2 µA | 2 µA |
| Current - Output High, Low | -, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA |
| Logic Level - Low | 0.5V ~ 1.8V | 0.5V ~ 1.8V | 0.5V ~ 1.8V | 0.5V ~ 1.8V | 0.5V ~ 1.8V |
| Logic Level - High | 1.5V ~ 4.2V | 1.5V ~ 4.2V | 1.5V ~ 4.2V | 1.5V ~ 4.2V | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 13ns @ 6V, 50pF | 15ns @ 6V, 50pF | 7ns @ 6V, 50pF | 15ns @ 6V, 50pF | 14ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-DHVQFN (2.5x3) | 14-DHVQFN (2.5x3) | 14-DHVQFN (2.5x3) | 14-DHVQFN (2.5x3) | 14-DHVQFN (2.5x3) |

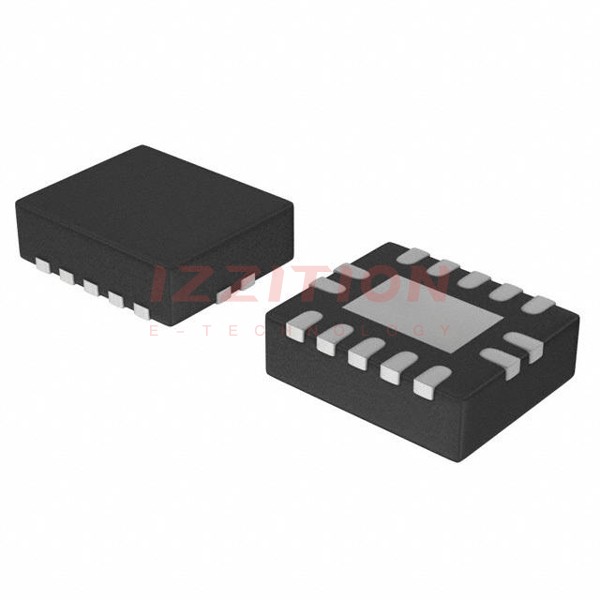

| Package / Case | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad |
