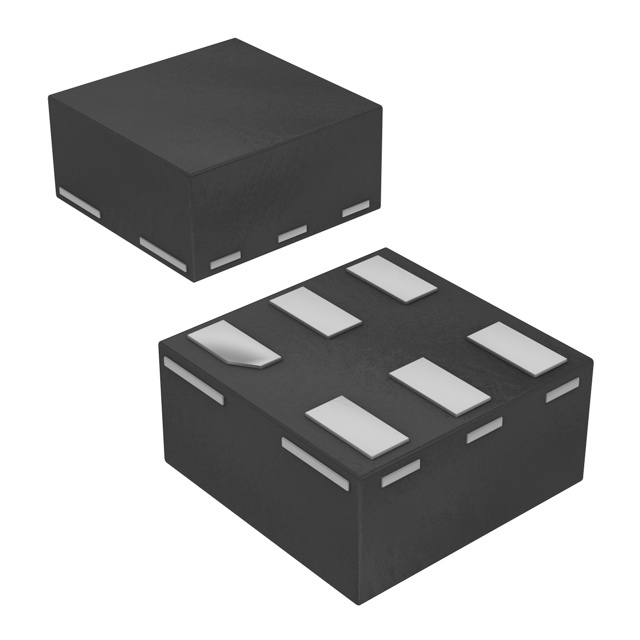

| Part Number | 74AXP1G02GSH | 74AXP1G06GSH | 74AXP1G08GSH | 74AXP1G32GSH | 74AXP1G02GXH | 74AXP1G04GSH | 74AXP1G09GSH | 74AXP1G00GSH | 74AXP1G02GMH | 74AXP1G02GNH |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP Semiconductors | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Logic Type | NOR Gate | - | AND Gate | OR Gate | NOR Gate | Inverter | AND Gate | NAND Gate | NOR Gate | NOR Gate |
| Number of Circuits | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | 2 | - | 2 | 2 | 2 | 1 | 2 | 2 | 2 | 2 |
| Features | - | - | - | - | - | - | Open Drain | - | - | - |
| Voltage - Supply | 0.7V ~ 2.75V | - | 0.7V ~ 2.75V | 0.7V ~ 2.75V | 0.7V ~ 2.75V | 0.7V ~ 2.75V | 0.7V ~ 2.75V | 0.7V ~ 2.75V | 0.7V ~ 2.75V | 0.7V ~ 2.75V |
| Current - Quiescent (Max) | 600 nA | - | 600 nA | 600 nA | 600 nA | 600 nA | 600 nA | 600 nA | 600 nA | 600 nA |
| Current - Output High, Low | 8mA, 8mA | - | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | -, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA |
| Logic Level - Low | 0.7V | - | 0.7V | 0.7V | 0.7V | 0.7V | - | 0.7V | 0.7V | 0.7V |
| Logic Level - High | 1.6V | - | 1.6V | 1.6V | 1.6V | 1.6V | - | 1.6V | 1.6V | 1.6V |
| Max Propagation Delay @ V, Max CL | 2.8ns @ 2.5V, 5pF | - | 2.8ns @ 2.5V, 5pF | 2.7ns @ 2.5V, 5pF | 2.8ns @ 2.5V, 5pF | 2.8ns @ 2.5V, 5pF | 4.1ns @ 2.5V, 5pF | 3ns @ 2.5V, 5pF | 2.8ns @ 2.5V, 5pF | 2.8ns @ 2.5V, 5pF |
| Operating Temperature | -40°C ~ 85°C | - | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-XSON, SOT1202 (1x1) | - | 6-XSON, SOT1202 (1x1) | 6-XSON, SOT1202 (1x1) | 5-X2SON (0.80x0.80) | 6-XSON, SOT1202 (1x1) | 6-XSON, SOT1202 (1x1) | 6-XSON, SOT1202 (1x1) | 6-XSON (1.45x1) | 6-XSON (0.9x1) |
| Package / Case | 6-XFDFN | - | 6-XFDFN | 6-XFDFN | 4-XFDFN Exposed Pad | 6-XFDFN | 6-XFDFN | 6-XFDFN | 6-XFDFN | 6-XFDFN |
