Please send RFQ , we will respond immediately.

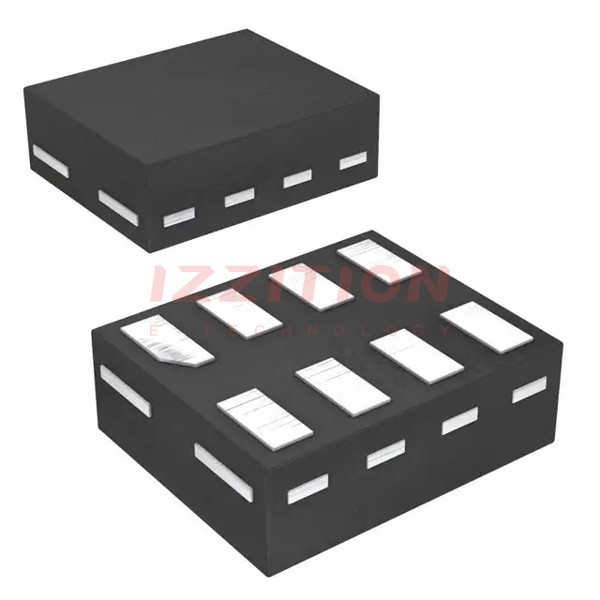

| Part Number | 74AUP2G86GN,115 | 74AUP2G86GT,115 | 74AUP2G86GS,115 | 74AUP2G86GF,115 |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active |
| Logic Type | XOR (Exclusive OR) | - | - | XOR (Exclusive OR) |
| Number of Circuits | 2 | - | - | 2 |
| Number of Inputs | 2 | - | - | 2 |
| Features | - | - | - | - |
| Voltage - Supply | 0.8V ~ 3.6V | - | - | 0.8V ~ 3.6V |
| Current - Quiescent (Max) | 500 nA | - | - | 500 nA |
| Current - Output High, Low | 4mA, 4mA | - | - | 4mA, 4mA |
| Logic Level - Low | 0.7V ~ 0.9V | - | - | 0.7V ~ 0.9V |
| Logic Level - High | 1.6V ~ 2V | - | - | 1.6V ~ 2V |
| Max Propagation Delay @ V, Max CL | 7.1ns @ 3.3V, 30pF | - | - | 7.1ns @ 3.3V, 30pF |
| Operating Temperature | -40°C ~ 125°C | - | - | -40°C ~ 125°C |
| Mounting Type | Surface Mount | - | - | Surface Mount |
| Supplier Device Package | 8-XSON (1.2x1) | - | - | 8-XSON (1.35x1) |
| Package / Case | 8-XFDFN | - | - | 8-XFDFN |
