Please send RFQ , we will respond immediately.

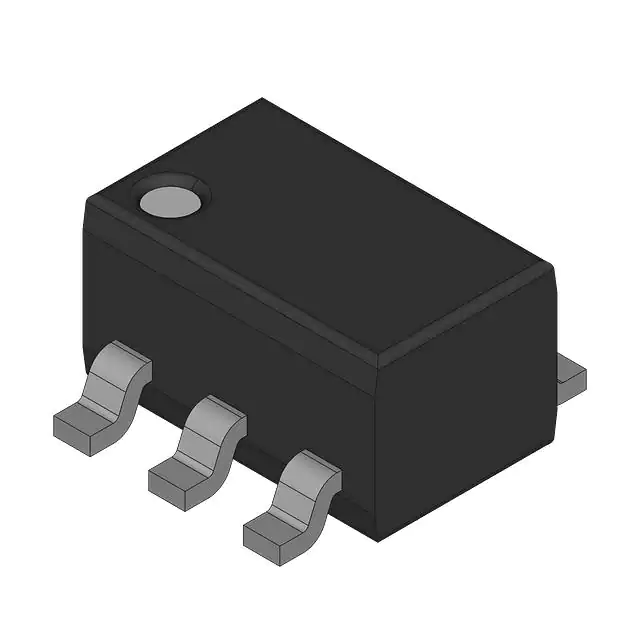

| Part Number | 74AUP2G0604GWH | 74AUP2G0604GFH | 74AUP2G0604GMH | 74AUP2G0604GNH | 74AUP2G0604GSH | 74AUP2G0604GW |
|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | NXP Semiconductors | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Obsolete | Active | Active | Active | Active |
| Logic Type | - | Inverter | - | Inverter | Inverter | Inverter |
| Number of Circuits | - | 2 | - | 2 | 2 | 2 |
| Number of Inputs | - | 2 | - | 2 | 2 | 2 |
| Features | - | Open Drain | - | Open Drain | Open Drain | Open Drain |
| Voltage - Supply | - | 0.8V ~ 3.6V | - | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V |
| Current - Quiescent (Max) | - | 500 µA | - | 500 µA | 500 µA | 500 µA |
| Current - Output High, Low | - | 4mA, 4mA | - | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA |
| Logic Level - Low | - | 0.7V ~ 0.9V | - | 0.7V ~ 0.9V | 0.7V ~ 0.9V | 0.7V ~ 0.9V |
| Logic Level - High | - | 1.6V ~ 2V | - | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V |
| Max Propagation Delay @ V, Max CL | - | 10.5ns @ 3.3V, 30pF | - | 10.5ns @ 3.3V, 30pF | 10.5ns @ 3.3V, 30pF | 10.5ns @ 3.3V, 30pF |
| Operating Temperature | - | -40°C ~ 125°C | - | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | - | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | 6-XSON, SOT891 (1x1) | - | 6-XSON (0.9x1) | 6-XSON, SOT1202 (1x1) | SOT-363 |
| Package / Case | - | 6-XFDFN | - | 6-XFDFN | 6-XFDFN | 6-TSSOP, SC-88, SOT-363 |
