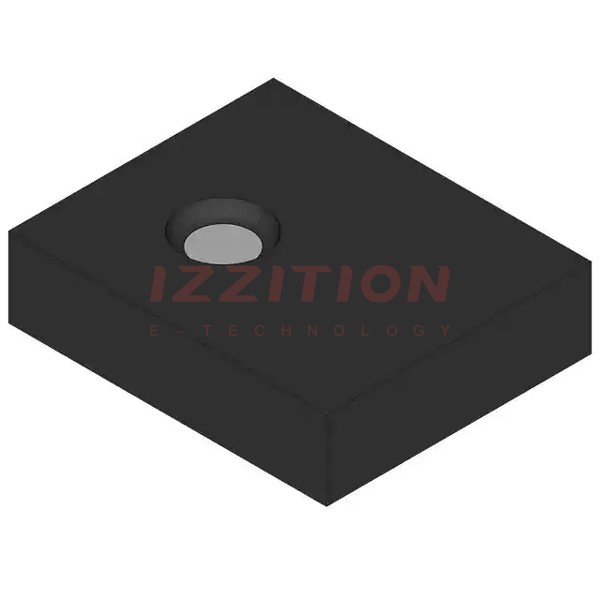

| Part Number | 74AUP2G02GN,115 | 74AUP2G02GS,115 | 74AUP2G02GT,115 | 74AUP2G08GN,115 | 74AUP2G32GN,115 | 74AUP2G00GN,115 | 74AUP2G02GF,115 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. | NXP Semiconductors | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Logic Type | - | NOR Gate | NOR Gate | - | OR Gate | NAND Gate | NOR Gate |
| Number of Circuits | - | 2 | 2 | - | 2 | 2 | 2 |
| Number of Inputs | - | 2 | 2 | - | 2 | 2 | 2 |
| Features | - | - | - | - | - | - | - |
| Voltage - Supply | - | 0.8V ~ 3.6V | 0.8V ~ 3.6V | - | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V |
| Current - Quiescent (Max) | - | 500 nA | 500 nA | - | 500 nA | 500 nA | 500 nA |
| Current - Output High, Low | - | 4mA, 4mA | 4mA, 4mA | - | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA |
| Logic Level - Low | - | 0.7V ~ 0.9V | 0.7V ~ 0.9V | - | 0.7V ~ 0.9V | 0.7V ~ 0.9V | 0.7V ~ 0.9V |
| Logic Level - High | - | 1.6V ~ 2V | 1.6V ~ 2V | - | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V |
| Max Propagation Delay @ V, Max CL | - | 6.4ns @ 3.3V, 30pF | 6.4ns @ 3.3V, 30pF | - | 6.4ns @ 3.3V, 30pF | 6.5ns @ 3.3V, 30pF | 6.4ns @ 3.3V, 30pF |
| Operating Temperature | - | -40°C ~ 125°C | -40°C ~ 125°C | - | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | - | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | 8-XSON (1.35x1) | 8-XSON (1.95x1) | - | 8-XSON (1.2x1) | 8-XSON (1.2x1) | 8-XSON (1.35x1) |
| Package / Case | - | 8-XFDFN | 8-XFDFN | - | 8-XFDFN | 8-XFDFN | 8-XFDFN |
