Please send RFQ , we will respond immediately.

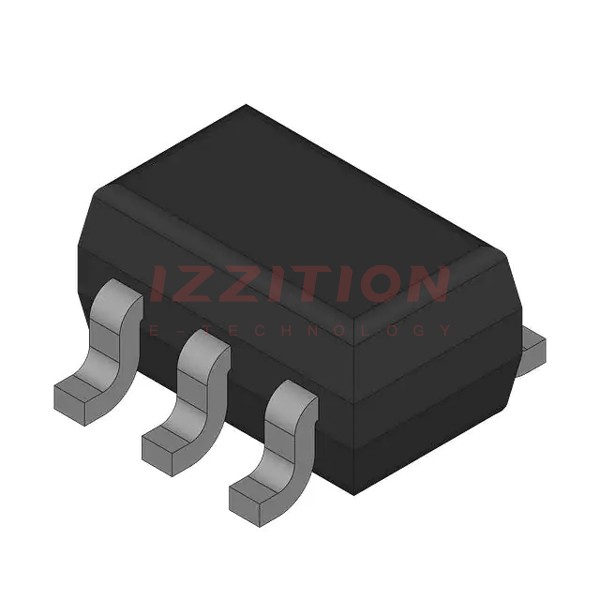

| Part Number | 74AUP1T04GW125 | 74AUP1T08GW125 | 74AUP1T14GW125 | 74AUP1T00GW125 | 74AUP1T04GW,125 |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Logic Type | Inverter | AND Gate | Inverter | NAND Gate | Inverter |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | 1 | 2 | 2 | 2 | 1 |
| Features | Schmitt Trigger | Schmitt Trigger | Schmitt Trigger | Schmitt Trigger | Schmitt Trigger |
| Voltage - Supply | 2.3V ~ 3.6V | 2.3V ~ 3.6V | 2.3V ~ 3.6V | 2.3V ~ 3.6V | 2.3V ~ 3.6V |
| Current - Quiescent (Max) | 1.2 µA | 1.2 µA | 1.2 µA | 1.2 µA | 1.2 µA |
| Current - Output High, Low | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA |
| Logic Level - Low | 0.1V ~ 0.44V | 0.1V ~ 0.44V | 0.1V ~ 0.44V | 0.1V ~ 0.44V | 0.1V ~ 0.44V |
| Logic Level - High | 1.9V ~ 2.6V | 1.9V ~ 2.6V | 1.9V ~ 2.6V | 1.9V ~ 2.6V | 1.9V ~ 2.6V |
| Max Propagation Delay @ V, Max CL | 6.9ns @ 3.3V, 30pF | 7ns @ 3.3V, 30pF | 6.9ns @ 3.3V, 30pF | 6.9ns @ 3.3V, 30pF | 6.9ns @ 3.3V, 30pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 5-TSSOP | 5-TSSOP | 5-TSSOP | 5-TSSOP | 5-TSSOP |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 |
