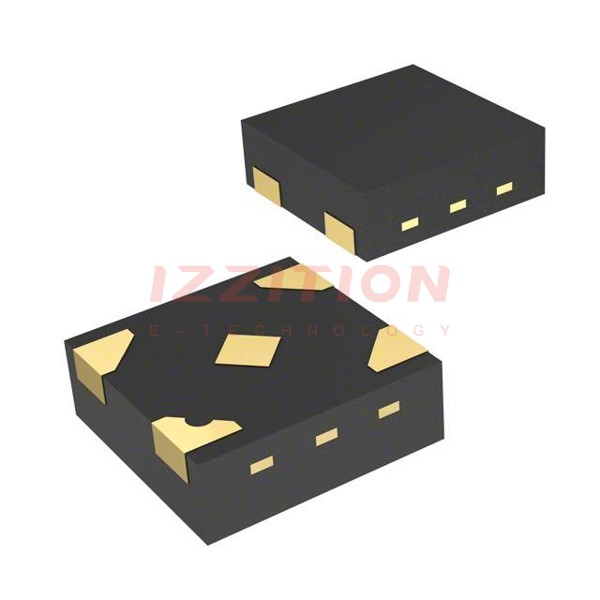

| Part Number | 74AUP1T02GXH | 74AUP1T32GXH | 74AUP1T08GXH | 74AUP1T04GXH | 74AUP1T00GXH | 74AUP1T02GWH |
|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Logic Type | NOR Gate | OR Gate | AND Gate | Inverter | NAND Gate | NOR Gate |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | 2 | 2 | 2 | 1 | 2 | 2 |
| Features | Schmitt Trigger | Schmitt Trigger | Schmitt Trigger | Schmitt Trigger | Schmitt Trigger | Schmitt Trigger |
| Voltage - Supply | 2.3V ~ 3.6V | 2.3V ~ 3.6V | 2.3V ~ 3.6V | 2.3V ~ 3.6V | 2.3V ~ 3.6V | 2.3V ~ 3.6V |
| Current - Quiescent (Max) | 1.2 µA | 1.2 µA | 1.2 µA | 1.2 µA | 1.2 µA | 1.2 µA |
| Current - Output High, Low | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA |
| Logic Level - Low | 0.1V ~ 0.44V | 0.1V ~ 0.44V | 0.1V ~ 0.44V | 0.1V ~ 0.44V | 0.1V ~ 0.44V | 0.1V ~ 0.44V |
| Logic Level - High | 1.9V ~ 2.6V | 1.9V ~ 2.6V | 1.9V ~ 2.6V | 1.9V ~ 2.6V | 1.9V ~ 2.6V | 1.9V ~ 2.6V |
| Max Propagation Delay @ V, Max CL | 6.8ns @ 3.3V, 30pF | 7ns @ 3.3V, 30pF | 7ns @ 3.3V, 30pF | 6.9ns @ 3.3V, 30pF | 6.9ns @ 3.3V, 30pF | 6.8ns @ 3.3V, 30pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 5-X2SON (0.80x0.80) | 5-X2SON (0.80x0.80) | 5-X2SON (0.80x0.80) | 5-X2SON (0.80x0.80) | 5-X2SON (0.80x0.80) | 5-TSSOP |
| Package / Case | 4-XFDFN Exposed Pad | 4-XFDFN Exposed Pad | 4-XFDFN Exposed Pad | 4-XFDFN Exposed Pad | 4-XFDFN Exposed Pad | 5-TSSOP, SC-70-5, SOT-353 |
