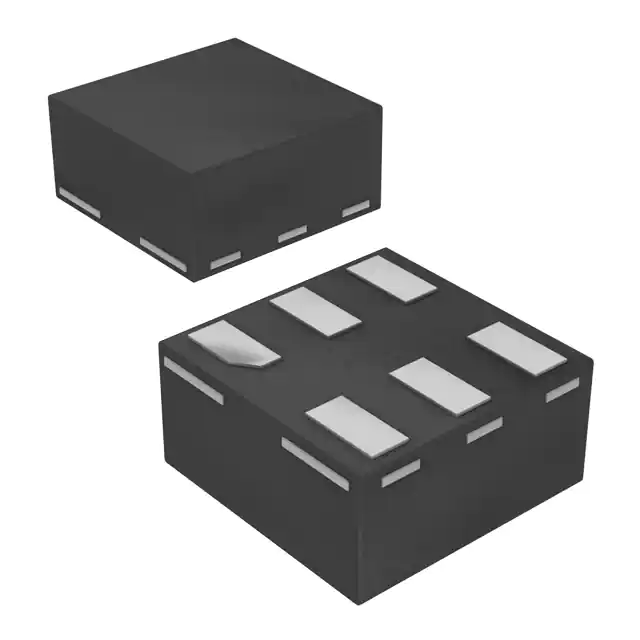

| Part Number | 74AUP1G332GF,132 | 74AUP1G332GM,132 | 74AUP1G332GS,132 | 74AUP1G332GN,132 | 74AUP1G132GF,132 | 74AUP1G32GF,132 |
|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Active | Active | Active | Obsolete | Obsolete |
| Logic Type | OR Gate | OR Gate | - | OR Gate | NAND Gate | OR Gate |
| Number of Circuits | 1 | 1 | - | 1 | 1 | 1 |
| Number of Inputs | 3 | 3 | - | 3 | 2 | 2 |
| Features | - | - | - | - | Schmitt Trigger | - |
| Voltage - Supply | 0.8V ~ 3.6V | 0.8V ~ 3.6V | - | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V |
| Current - Quiescent (Max) | 500 nA | 500 nA | - | 500 nA | 500 nA | 500 nA |
| Current - Output High, Low | 4mA, 4mA | 4mA, 4mA | - | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA |
| Logic Level - Low | 0.7V ~ 0.9V | 0.7V ~ 0.9V | - | 0.7V ~ 0.9V | 0.1V ~ 0.88V | 0.7V ~ 0.9V |
| Logic Level - High | 1.6V ~ 2V | 1.6V ~ 2V | - | 1.6V ~ 2V | 0.6V ~ 2.29V | 1.6V ~ 2V |
| Max Propagation Delay @ V, Max CL | 5.5ns @ 3.3V, 30pF | 5.5ns @ 3.3V, 30pF | - | 5.5ns @ 3.3V, 30pF | 7.8ns @ 3.3V, 30pF | 6.4ns @ 3.3V, 30pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | - | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-XSON, SOT891 (1x1) | 6-XSON, SOT886 (1.45x1) | - | 6-XSON (0.9x1) | 6-XSON, SOT891 (1x1) | 6-XSON, SOT891 (1x1) |
| Package / Case | 6-XFDFN | 6-XFDFN | - | 6-XFDFN | 6-XFDFN | 6-XFDFN |
