Please send RFQ , we will respond immediately.

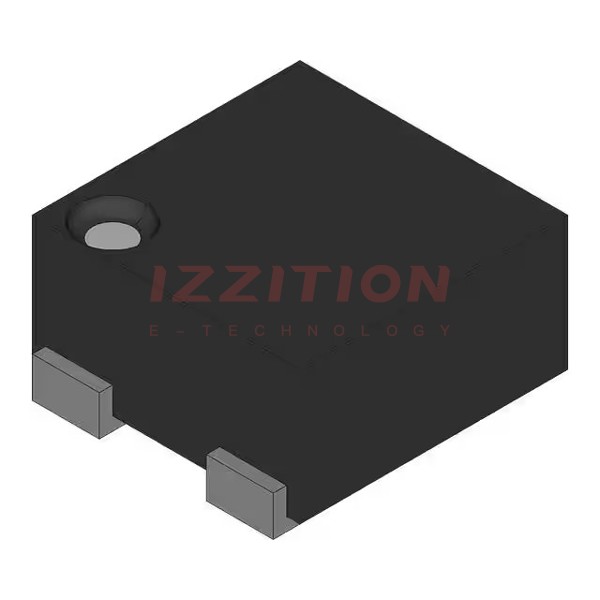

| Part Number | 74AUP1G02GX,125 | 74AUP1G04GX,125 | 74AUP1G08GX,125 | 74AUP1G06GX,125 | 74AUP1G09GX,125 | 74AUP1G00GX,125 | 74AUP1G02GW,125 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Logic Type | - | Inverter | AND Gate | Inverter | AND Gate | NAND Gate | NOR Gate |
| Number of Circuits | - | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | - | 1 | 2 | 1 | 2 | 2 | 2 |
| Features | - | - | - | Open Drain | Open Drain | - | - |
| Voltage - Supply | - | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V |
| Current - Quiescent (Max) | - | 500 nA | 500 nA | 500 nA | 500 nA | 500 nA | 500 nA |
| Current - Output High, Low | - | 4mA, 4mA | 4mA, 4mA | -, 4mA | -, 4mA | 4mA, 4mA | 4mA, 4mA |
| Logic Level - Low | - | 0.7V ~ 0.9V | 0.7V ~ 0.9V | 0.7V ~ 0.9V | 0.7V ~ 0.9V | 0.7V ~ 0.9V | 0.7V ~ 0.9V |
| Logic Level - High | - | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V |
| Max Propagation Delay @ V, Max CL | - | 5.4ns @ 3.3V, 30pF | 6.2ns @ 3.3V, 30pF | 10.5ns @ 3.3V, 30pF | 12.7ns @ 3.3V, 30pF | 6.5ns @ 3.3V, 30pF | 6.4ns @ 3.3V, 30pF |
| Operating Temperature | - | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | 5-X2SON (0.80x0.80) | 5-X2SON (0.80x0.80) | 5-X2SON (0.80x0.80) | 5-X2SON (0.80x0.80) | 5-X2SON (0.80x0.80) | 5-TSSOP |
| Package / Case | - | 4-XFDFN Exposed Pad | 4-XFDFN Exposed Pad | 4-XFDFN Exposed Pad | 4-XFDFN Exposed Pad | 4-XFDFN Exposed Pad | 5-TSSOP, SC-70-5, SOT-353 |
