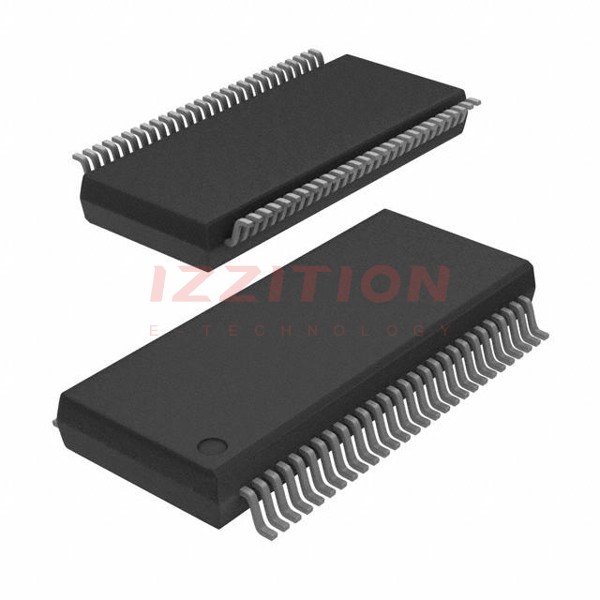

| Part Number | 74ALVT162823DL,518 | 74ALVT16823DL,518 | 74ALVT162821DL,518 | 74ALVT162823DL,512 |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Not For New Designs | Obsolete | Obsolete | Not For New Designs |
| Function | Master Reset | Master Reset | Standard | Master Reset |
| Type | D-Type | D-Type | D-Type | D-Type |
| Output Type | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted |
| Number of Elements | 2 | 2 | 2 | 2 |
| Number of Bits per Element | 9 | 9 | 10 | 9 |
| Clock Frequency | - | 250 MHz | 150 MHz | - |
| Max Propagation Delay @ V, Max CL | 4.4ns @ 3.3V, 50pF | 3.1ns @ 3.3V, 50pF | 5ns @ 3.3V, 50pF | 4.4ns @ 3.3V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 8mA, 12mA; 12mA, 12mA | 8mA, 24mA; 32mA, 64mA | 8mA, 12mA; 12mA, 12mA | 8mA, 12mA; 12mA, 12mA |
| Voltage - Supply | 2.3V ~ 2.7V, 3V ~ 3.6V | 2.3V ~ 2.7V, 3V ~ 3.6V | 2.3V ~ 2.7V, 3V ~ 3.6V | 2.3V ~ 2.7V, 3V ~ 3.6V |
| Current - Quiescent (Iq) | 70 µA | 100 µA | - | 70 µA |
| Input Capacitance | 3 pF | 3 pF | 3 pF | 3 pF |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 56-SSOP | 56-SSOP | 56-SSOP | 56-SSOP |
| Package / Case | 56-BSSOP (0.295", 7.50mm Width) | 56-BSSOP (0.295", 7.50mm Width) | 56-BSSOP (0.295", 7.50mm Width) | 56-BSSOP (0.295", 7.50mm Width) |
