Please send RFQ , we will respond immediately.

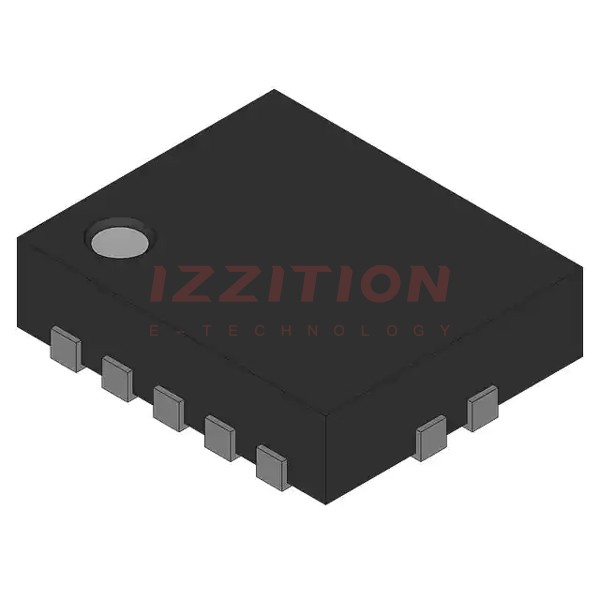

| Part Number | 74AHCT04BQ,115 | 74AHCT14BQ,115 | 74AHCT08BQ,115 | 74AHCT00BQ,115 | 74AHCT02BQ,115 |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Logic Type | - | Inverter | AND Gate | NAND Gate | NOR Gate |
| Number of Circuits | - | 6 | 4 | 4 | 4 |
| Number of Inputs | - | 1 | 2 | 2 | 2 |
| Features | - | Schmitt Trigger | - | - | - |
| Voltage - Supply | - | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | - | 2 µA | 2 µA | 2 µA | 2 µA |
| Current - Output High, Low | - | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA |
| Logic Level - Low | - | 0.5V ~ 0.6V | 0.8V | 0.8V | 0.8V |
| Logic Level - High | - | 1.9V ~ 2.1V | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | - | 8ns @ 5V, 50pF | 7.9ns @ 5V, 50pF | 7.9ns @ 5V, 50pF | 7.5ns @ 5V, 50pF |
| Operating Temperature | - | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | 14-DHVQFN (2.5x3) | 14-DHVQFN (2.5x3) | 14-DHVQFN (2.5x3) | 14-DHVQFN (2.5x3) |
| Package / Case | - | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad |
