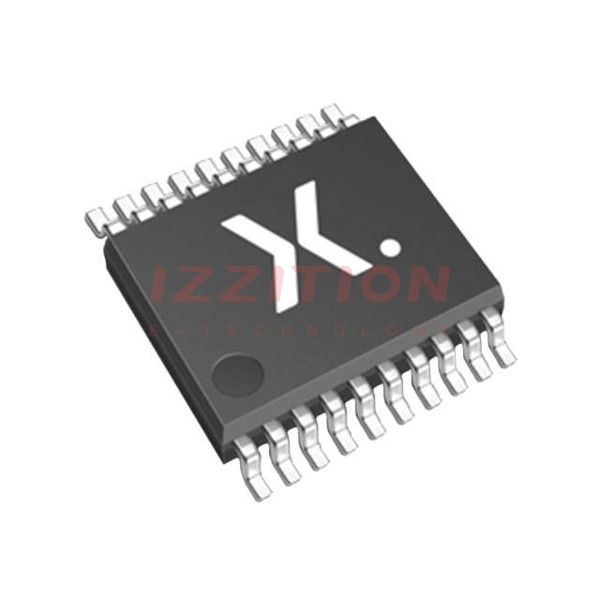

| Part Number | 74AHC374PW,118 | 74AHCT74PW,118 | 74AHC574PW,118 | 74AHC74PW,118 | 74AHCT374PW,118 | 74AHC377PW,118 | 74AHC374PW,112 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP Semiconductors | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Obsolete |
| Function | Standard | - | Standard | Set(Preset) and Reset | Standard | Standard | Standard |
| Type | D-Type | - | D-Type | D-Type | D-Type | D-Type | D-Type |
| Output Type | Tri-State, Non-Inverted | - | Tri-State, Non-Inverted | Complementary | Tri-State, Non-Inverted | Non-Inverted | Tri-State, Non-Inverted |
| Number of Elements | 1 | - | 1 | 2 | 1 | 1 | 1 |
| Number of Bits per Element | 8 | - | 8 | 1 | 8 | 8 | 8 |
| Clock Frequency | 120 MHz | - | 115 MHz | 115 MHz | 130 MHz | 120 MHz | 120 MHz |
| Max Propagation Delay @ V, Max CL | 10.1ns @ 5V, 50pF | - | 10.6ns @ 5V, 50pF | 9.3ns @ 5V, 50pF | 10.4ns @ 5V, 50pF | 10.5ns @ 5V, 50pF | 10.1ns @ 5V, 50pF |
| Trigger Type | Positive Edge | - | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 8mA, 8mA | - | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA |
| Voltage - Supply | 2V ~ 5.5V | - | 2V ~ 5.5V | 2V ~ 5.5V | 4.5V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V |
| Current - Quiescent (Iq) | 4 µA | - | 4 µA | 2 µA | 4 µA | 4 µA | 4 µA |
| Input Capacitance | 3 pF | - | 3 pF | 3 pF | 3 pF | 3 pF | 3 pF |
| Operating Temperature | -40°C ~ 125°C (TA) | - | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 20-TSSOP | - | 20-TSSOP | 14-TSSOP | 20-TSSOP | 20-TSSOP | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | - | 20-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) |
