Please send RFQ , we will respond immediately.

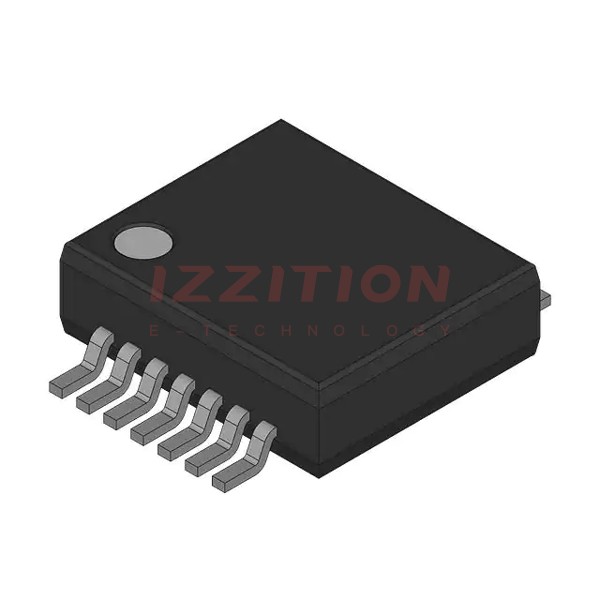

| Part Number | 74ABT04DB,112 | 74ABT08DB,112 | 74ABT04DB,118 | 74ABT00DB,112 | 74ABT02DB,112 | 74ABT04D,112 |
|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | - | AND Gate | Inverter | NAND Gate | NOR Gate | Inverter |
| Number of Circuits | - | 4 | 6 | 4 | 4 | 6 |
| Number of Inputs | - | 2 | 1 | 2 | 2 | 1 |
| Features | - | - | - | - | - | - |
| Voltage - Supply | - | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | - | 50 µA | 50 µA | 50 µA | 50 µA | 50 µA |
| Current - Output High, Low | - | 15mA, 20mA | 15mA, 20mA | 15mA, 20mA | 15mA, 20mA | 15mA, 20mA |
| Logic Level - Low | - | 0.8V | 0.8V | 0.8V | 0.8V | 0.8V |
| Logic Level - High | - | 2V | 2V | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | - | 3.4ns @ 5V, 50pF | 3.4ns @ 5V, 50pF | 3.6ns @ 5V, 50pF | 3.7ns @ 5V, 50pF | 3.4ns @ 5V, 50pF |
| Operating Temperature | - | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | 14-SSOP | 14-SSOP | 14-SSOP | 14-SSOP | 14-SO |
| Package / Case | - | 14-SSOP (0.209", 5.30mm Width) | 14-SSOP (0.209", 5.30mm Width) | 14-SSOP (0.209", 5.30mm Width) | 14-SSOP (0.209", 5.30mm Width) | 14-SOIC (0.154", 3.90mm Width) |
