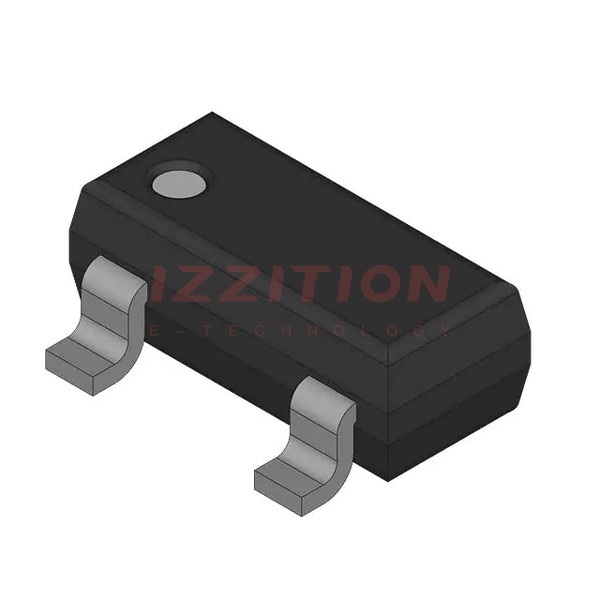

| Part Number | 2N7002CK | 2N7002K |
|---|---|---|
| Manufacturer | Nexperia USA Inc. | MDD |
| Product Status | Active | Active |
| FET Type | - | N-Channel |
| Technology | - | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | - | 60 V |
| Current - Continuous Drain (Id) @ 25°C | - | 500mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | - | 900mOhm @ 300mA, 10V |
| Vgs(th) (Max) @ Id | - | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - | 0.31 nC @ 10 V |
| Vgs (Max) | - | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 23.8 pF @ 10 V |
| FET Feature | - | - |
| Power Dissipation (Max) | - | 500mW (Ta) |
| Operating Temperature | - | -55°C ~ 150°C |
| Mounting Type | - | Surface Mount |
| Supplier Device Package | - | SOT-23 |
| Package / Case | - | TO-236-3, SC-59, SOT-23-3 |
