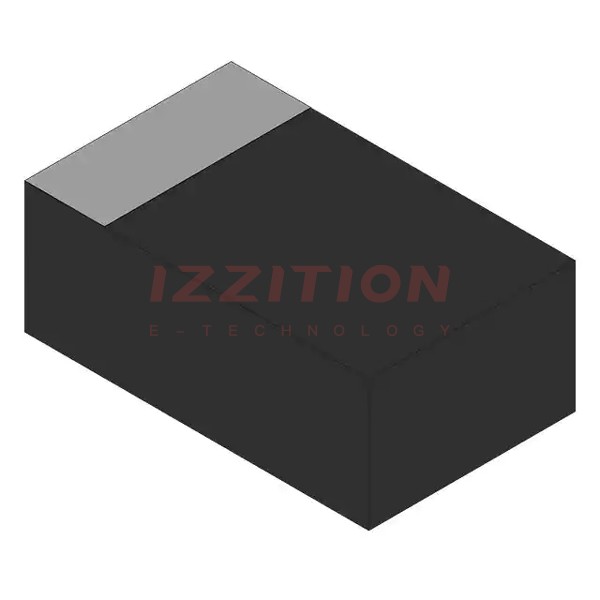

| Part Number | 2N7002BKM315 | 2N7002BKM,315 |
|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 450mA (Ta) | 450mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 1.6Ohm @ 500mA, 10V | 1.6Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA | 2.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.6 nC @ 4.5 V | 0.6 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 50 pF @ 10 V | 50 pF @ 10 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 360mW (Ta) | 360mW (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-883 | SOT-883 |
| Package / Case | SC-101, SOT-883 | SC-101, SOT-883 |
