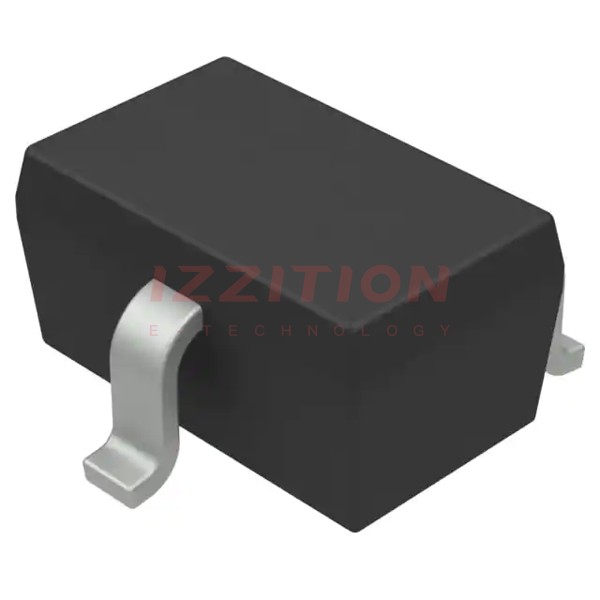

| Part Number | 1PS70SB14,115 | 1PS70SB84,115 | 1PS70SB44,115 | 1PS70SB16,115 | 1PS70SB15,115 |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Diode Configuration | 1 Pair Series Connection | 1 Pair Series Connection | 1 Pair Series Connection | 1 Pair Common Anode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 15 V | 40 V | 30 V | 30 V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) | 30mA (DC) | 120mA (DC) | 200mA (DC) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA | 700 mV @ 30 mA | 1 V @ 40 mA | 800 mV @ 100 mA | 800 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V | 200 nA @ 1 V | 10 µA @ 40 V | 2 µA @ 25 V | 2 µA @ 25 V |
| Operating Temperature - Junction | 150°C (Max) | 125°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 | SOT-323 | SOT-323 | SOT-323 | SOT-323 |
