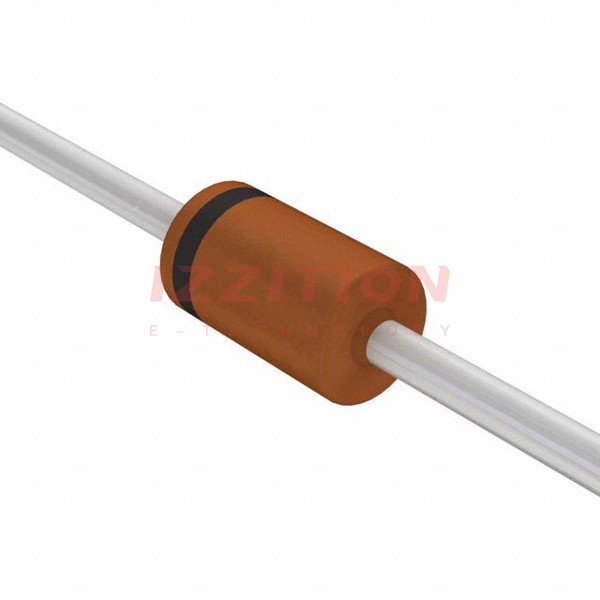

Nexperia USA Inc.-1N4747A,113 - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	1N4747A,113	1N4747A,133	1N4749A,113	1N4748A,113	1N4745A,113	1N4746A,113
Manufacturer	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.
Product Status	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	20 V	20 V	24 V	22 V	16 V	18 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	1 W	1 W	1 W	1 W	1 W	1 W
Impedance (Max) (Zzt)	22 Ohms	22 Ohms	25 Ohms	23 Ohms	16 Ohms	20 Ohms
Current - Reverse Leakage @ Vr	5 µA @ 15.2 V	5 µA @ 15.2 V	5 µA @ 18.2 V	5 µA @ 16.7 V	5 µA @ 12.2 V	5 µA @ 13.7 V
Voltage - Forward (Vf) (Max) @ If	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA
Operating Temperature	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	DO-204AL, DO-41, Axial	DO-204AL, DO-41, Axial	DO-204AL, DO-41, Axial	DO-204AL, DO-41, Axial	DO-204AL, DO-41, Axial	DO-204AL, DO-41, Axial
Supplier Device Package	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41

Nexperia USA Inc. 1N4747A,113
